Description

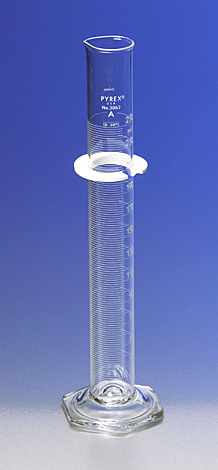

Pyrex® Single Metric Scale Cylinder, Serialized/Certified Class A, White Graduations, TD, 1000 mL, 1/CS, 3062-1L
Features:
- Calibrated to deliver (TD)
- Class A - individually serialized and supplied with Certificate of Identification and Capacity
- Traceable to NIST standards
- Easy-to-read permanent white graduations
- Bumper guard available on all sizes except 10 mL - 10 mL has funnel style top
- Pourout top style with no stopper
- Reusable
Additional Sizes:
| 11-7690-28 | 10mL, 0.1mL graduation, ±0.1 Tolerance |
| 11-7690-42 | 25mL, 0.2mL graduation, ±0.17 Tolerance |
| 11-7690-53 | 50mL, 1mL graduation, ±0.25 Tolerance |
| 11-7690-67 | 100mL, 1mL graduation, ±0.5 Tolerance |
| 11-7690-78 | 250mL, 2mL graduation, ±1 Tolerance |
| 11-7690-81 | 500mL, 5mL graduation, ±2 Tolerance |
| 11-7690-86 | 1000mL, 10mL graduation, ±3 Tolerance |
| 11-7690-88 | 2000mL, 20mL graduation, ±6 Tolerance |
Specifications
| Range | Single metric scale - to deliver |
|---|---|
| Range | Graduation intervals: 10 mL |
| Capacity | 1000 mL |
| Material | Borosilicate glass |
| Accuracy | +/-3 mL |
| Compliant/Standard | ASTM E-1272 & E-542 |
| Dimensions | Height x outside diameter: 465 x 64 mm |
| Manufacturer | Corning |
| Model No | 3062-1L |
