Description

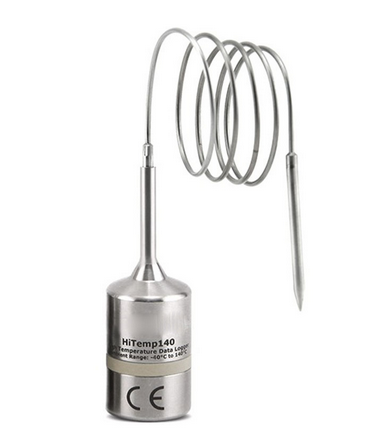

Thermco Products® Hi-Temp 140 Autoclave Temperature Data Logger, ACCHITEMP140FC
Features:
- Rugged, high precision, data logger for use in severe environments
- Made of stainless steel
- Submersible
- Temperatures to 140 °C (284 °F with ± 0.1 °C (0.18 °F) accuracy
- Stores upt to 32,700 date and temperature stamped readings in non-volatile solid state memory (even with discharged battery)
- Use with USB docking station and software (sold separately) for starting, stopping and downloading the data
- With software, graphical, tabular and summary data is provided for analysis, can be viewed in °C, °F, °K, or °R, and can be exported to Excel for additional calculations
Applications:
- Autoclaves and sterilizers
- Ovens
- Research labs
- Food processing
Specifications:
| Temperature Sensor | 100 Ω Platinum RTD |
| Temperature Resolution | 0.01 °C (0.02 °F) |
| Start Modes | Software programmable immediate start Delay start up to eighteen months in advance |
| Stop Mode | Manual through software Timed (specific date and time) |
| Real Time Recording | May be used with PC to monitor and record data in real time |
| Password Protection | Optional password programmable to restrict access to configuration options; data readable without the password |
| Memory | 32,700 readings |
| Wrap Around | Yes |
| Reading Rate | One second up to once every 24 hours |
| Battery Life | 1 year typical (1 minute reading rate at 25 °C/77 °F) |
| Calibration | Digital calibration through software |
| Calibration Date | Automatically recorded within device |
| Data Format | Date and time stamped °C, °F, °K, °R |
| Time Accuracy | ± 1 minute/month at 20 °C to 30 °C (68 °F to 86 °F) (Stand alone mode) |
| Computer Interface | IFC 400 USB docking station required 125,000 baud |
Specifications
| Range | -200 to +260 °C (-328 to +500 °F) |
|---|---|
| Material | 316 Stainless Steel |
| Power | 3.6 V high-temperature lithium battery included; user replaceable |
| Application | Autoclave/Sterilizer/Oven/Laboratory/Food Temperature Monitoring |
| Accuracy | ± 0.1 °C / ± 0.18 °F (20 to +140 °C / 68 to +284 °F) |
| Operating Environment | -40 to +140 °C (-40 to +284 °F), 0% to 100% relative humidity |
| Connectivity | USB Cable |
| Connectivity | Docking Station |
| Dimensions | Body: 2.7 in. x 0.97 in. diameter (67 mm x 25 mm diameter): Probe: 2 in. x 0.188 in. to 0.125 in. transitional diameter |
| Weight | 4.2 oz (120 g) |
| Manufacturer | Thermco Products |
| Model No | ACCHITEMP140FC |
