Carbolite-Gero Digital Ash Fusion System for Coal & Coke, 220-240 V, 1 Phase, 50/60 Hz, Verder Scientific, CAFG5-CO-230SN

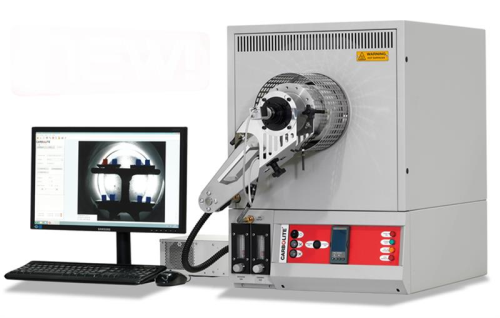

Carbolite®-Gero's Digital Ash Fusion System for Coal & Coke (CO + CO2 Reducing Gas/Air Oxidizing Gas/Nitrogen Purge Gas), 220-240V, 1 Phase, 50/60Hz, CAFG5-CO-230SN — Other Models Available upon Request

The CAF G5 is designed to test ash fusibility, and optionally, the increasingly popular determination of biomass or solid recovered fuels testing and conforms to the Standards ISO 540:2008; ASTM D1857/D1857M-04 (2010); DD CEN/TS 15370-1:2006 (biomass); DD CEN/TR 15404:2010 (solids recovered fuels (SRF)).  Its automatic and continuous recording digital images frees the technician for other tasks while tests are in progress with the ability to review the results later.  This new system greatly enhances both the quality of the images and test results which increases the efficiency of the laboratory.  With maximum temperature of 1600 °C (2910 °F), this instrument is suitable for both biomass and coal testing.  Also, it can be equipped with an optional work tube integrated lighting system for testing low "initial deformation" temperature of SRF or biomass samples.

Features:



• New analysis software which can be used in fully automatic or manual modes
• New software zoom function to enable accurate post-test analysis of individual samples with improved resolution
• New one configurable grid assigned to each test piece
• New temperature controller program set up within the software
• New space saving embedded computer with Windows 7 Embedded Professional software runs future proof firmware
• New default software settings and individual analysis form for coal ash, biomass, and SRF
• New optional work tube integrated lighting system for testing low "initial deformation" temperature of SRF or biomass samples
• Lightweight insulation allows quick cooling permitting multiple test runs to be completed during the day
• Automated digital image capture of samples—image recording frequency adjustable from every 1 °C to ever 20 °C increments
• 1600 °C (2910 °F) tube furnace with integral SiC elements
• External link to embedded PC & Software
• Flow meters for oxidizing, reducing gas flow (dependent on requirements of method)
• 79 mm inner diameter work tube allows more than 6 samples/run
• Gas tight seal for efficient use of gases and safety
• Automatic temperature programmer with multiple PID control
• Gas inlets for reducing, oxidizing, and purging gases
• Oxidizing or reducing gas selection switch



Supplied with:



• Furnace
• Digital Camera System
• PC and software
• CAF controller with multiple PID control

Specifications:



Temperature Range	Up to 1600 °C (1600 °C required for some biomass samples)
Temperature Precision	± 3 °C above 800 °C
Temperature Ramp Rate	8 °C per minute
Temperature Control	Digital multiple PID terms with gain scheduling and multi offset parameters
Temperature Display	°C
Work Tube Dimensions	79 mm internal diameter
Tube Material	Mullite
Heating Elements	Silcon carbide x 6
Maximum Sample Load	12
Conforms to Standards	BS ISO 540:2008; ASTM D1857/D1857M-04 (2010); DD CEN/TS 15370-1:2006 (biomass); DD CEN/TR 15404:2010 (solids recovered fuels (SRF))
Ash Fusibility Determination	Automatic or Manual (Coal & coke: DT, ST, H, FT) (Biomass/SRF: IST, DT, HT, FT)
Analysis Time	3 runs per working day (including cool down times)
Image Collection	Digital — up to 1 frame per 1 °C rise in temperature
Image Resolution	1280 x 1024 pixels
Gas Requirements	(Specific gas choice must be made at time of ordering. Call for recommendation)
Purge	N2 or CO2
Oxidizing	O2 or Air
Reducing	CO + CO2 or H2 + CO2
Ventilation	Forced air ventilation
Exhaust	Pipe to be vented into a separate fume hood
Safety	Fail safe gas system and CO alarm supplied
Physical Dimensions (mm)	700 (h) x 505 (w) x 765 (case depth) x 970 (overall case depth)
Weight (kg) (furnace)	84
Power Supply	220-240V, 50-60/Hz, Single phase, 50 A
Power Switching	Solid state relays
Maximum Power Consumption (kW)	7
Environmental Conditions
Operating Conditions	5 °C — 40 °C
Relative Humidity	Maximum 80% up to 31 °C decreasing linearly to 50% at 40 °C
Overtemperature Protection	Digital with single high alarm relay
