Description

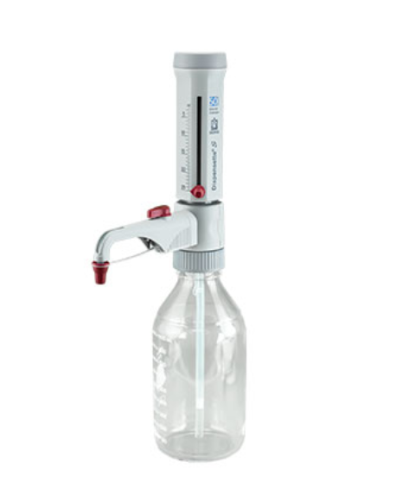

BrandTech™ Dispensette S, Analog Adjustable-Volume Valve, 2.5-25 mL, with Recirculation Valve, 4600151
Features:
- “Floating piston” design forms a zero-wear sealing system with outstanding sliding properties
- The GL45 mm standard thread, plus included adapters, fit most common lab bottles
- The valve block rotates 360° so the bottle label always faces the user for safety
- Telescoping filling tube adjusts to different bottle sizes
- Easy to disassemble for cleaning
- Simple to mount discharge tube available with or without integrated recirculation valve
- Designed without additional sealing rings for ease of cleaning and maintenance
- Replaceable discharge valve with safety valve
- Olive-shaped filling valve for firmer attachment of filling tubes
- Scalloped track for secure volume setting on analog dispensers
Included:
- Discharge tube or discharge tube with recirculation valve
- Telescoping filling tube
- Recirculation tube (only with recirculation valve models)
- Mounting tool
- Bottle adapters
- 1, 2, 5, 10 mL models include GL 24-25, GL 28/S 28, GL 32-33, GL 38, S 40 adapters with 125 to 240 mm filling tube
- 25, 50, 100 mL models include GL 32-33, GL 38, S 40 adapters with 170 to 330 mm filling tube
- Performance certificate
- Operating manual
Specification:
| Accuracy | 0.5% (125 μL) |
| Certifications/Compliance | ISO 9001 |
| Description | With recirculation valve |
| Volume (Metric) | 2.5 to 25 mL |
| For Use With (Application) | Dispensing aggressive reagents, including concentrated bases and acids such as H3PO4, H2SO4 (except e.g., HCl, HNO3 und HF), saline solutions, as well as many organic solvents |
| Autoclavable | Autoclavable at 121 °C |
| Color | Red |
| Type | Dispenser |
| Display | Analog |
| Increments | 0.5 mL |
Specifications
| Range | Volume: 2.5 to 25 mL |
|---|---|
| Compliant/Standard | ISO 9001 |
| Manufacturer | Brandtech Inc |
| Model No | 4600151 |
| Warranty | 1 year |
