Description

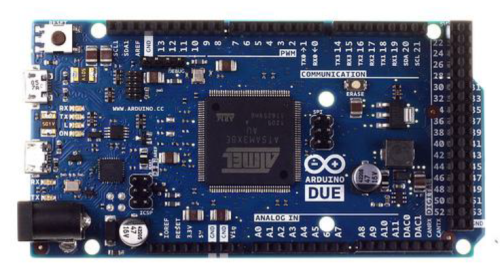

Arduino® Due Single Board Computer, Programmed, AT91SAM3X8E, 54 I/O, 512KB Flash, 96KB SRAM, A000062, 47W2961
Features:
- Microcontroller board based on Atmel SAM3X8E ARM Cortex-M3 CPU
- First Arduino board based on 32-bit ARM core microcontroller
- It has 54 digital input/output pins (of which 12 can be used as PWM outputs), 12 analog inputs, 4 UARTs (hardware serial ports), 84 MHz clock, USB OTG capable connection, 2 DAC (digital to analog), 2 TWI, power jack, SPI header, a JTAG header, reset button and erase button
- Warning: Unlike other Arduino boards, Arduino Due board runs at 3.3 V — maximum voltage that the I/O pins can tolerate is 3.3 V (Providing higher voltages, like 5 V to an I/O pin could damage board
- Board contains everything needed to support microcontroller — simply connect it to computer with micro-USB cable or power it with AC-to-DC adapter or battery to get started
- Due is compatible with all Arduino shields that work at 3.3 V and are compliant with the 1.0 Arduino pinout
Specifications:
| Silicon Manufacturer | Atmel |
| Number of Bits | 32 bit |
| Silcon Family Name | AT91SAM3xxx |
| Core Architecture | ARM |
| Core Sub-Architecture | Cortex-M3 |
| Silicon Core Number | SAM3X |
| Kit Contents | Board only |
| RoHS Compliant | Yes |
| RoHS Phthalates Compliant | Yes |
Specifications
| Power | 3.3 VAC |
|---|---|
| Manufacturer | Arduino |
| Model No | A000062 |
