Description

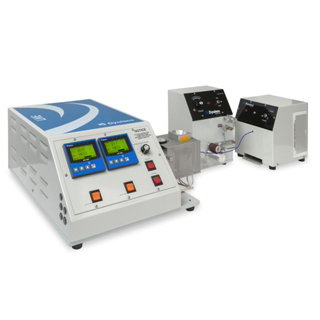

Dynisco® LME Benchtop Extruder
From very fine powders to coarse materials, the LME will meet many extruding needs. The LME possesses a movable header and dial gauge that allows for constant mixing adjustability. While in operation, the rotational shearing (mixing) is controlled by adjusting the distance between the end of the rotor and the inside header.
Features:
- R & D tool
- Uses as little as a few grams of material
- Three-part system: Extruder, Optional Take Up, and Chopper Accessories
- Standard configuration provides rod header with replaceable 1/8” (.3175cm) orifice
- Four optional headers available (ribbon, spinerette, tube and wire coating rod)
- Two separate temperature controls: rotor heater and header heater
- Short residence time – minimal thermal degradation during mixing process
- Complete processing instrument mixing, compounding and extrusion
- Unique, screwless design
- Maximum temperature 400°C
- Variable speed control, 5 to 260rpm
- Water-cooled feed hopper
Specifications
| Manufacturer | Dynisco |
|---|
