Description

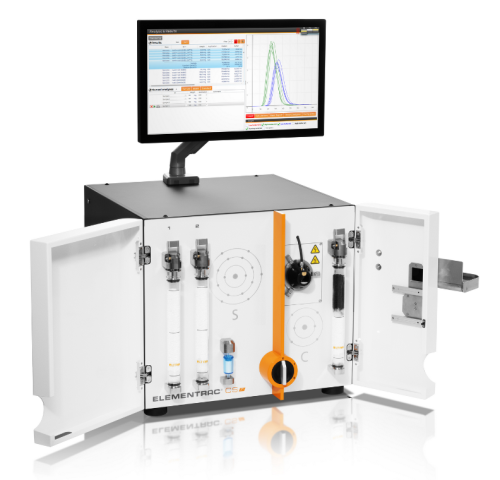

Verder Scientific® Eltra® Elementrac® CS-r Analyzer and PC System, Configured as Dual Infrared Sulfur Detection Unit, 2 x S, 0.001 - 31.4 % S, 350 mg Sample Weight, 88200-3008
Features:
- High-performance carbon and sulfur analyzer for inorganic solid materials for simultaneous measurement of carbon and sulfur
- High sample weight possible
- Optimized (low blank) sample port
- IR path made of solid gold for extended lifetime
- Wide measuring range from 20 ppm to 100%
- Gas required: oxygen 99.5 % pure (2 - 4 bar / 30 - 60 psi)
- Chemicals required: magnesium perchlorate, sodium hydroxide
- Configuration 88200-3008: Dual infrared sulfur detection (2×S cells) for extended dynamic range and sensitivity
- Simultaneous carbon (C) and sulfur (S) determination via high-temperature combustion
- Wide analytical range:
- Carbon: trace levels up to high percentage concentrations
- Sulfur: approx. 0.001% to 30%+ (method dependent)
- High-frequency induction furnace ensures rapid and complete combustion of samples
- Advanced IR detection system with automatic range switching for accurate results across broad concentration ranges
- Designed for analysis of metals, ores, ceramics, cement, and other inorganic materials
- Fast cycle times for high-throughput laboratory environments
- Integrated automatic cleaning system reduces maintenance and downtime
- User-friendly software control via external PC (included or specified separately) for:
- Method setup and calibration
- Real-time data acquisition
- Reporting and data export
- Supports LIMS connectivity and data traceability requirements
- Modular design allows configuration flexibility and future upgrades
- Requires external PC, monitor, balance, and gases for operation (often supplied as complete system package)
- Ideal for quality control, research, and production laboratories
Applications:
- Agriculture
- Biology
- Chemistry
- Plastics
- Coal
- Power plant
- Construction materials
- Environment
- Recycling
- Medicine
- Pharmaceuticals
Specifications
| Range | Furnace Temperature: adjustable to 1550 degrees C in steps of 1 degree |
|---|---|
| Range | Sample weight: to 350 mg |
| Range | Measuring: 20 ppm to 100%, Dual Sulfur Analyzer: 0.001-31.4% S |
| Range | Typical Analysis Time: 60 - 180 s |
| Power | 230 V, 50/60 H, max. heating up current 20 A |
| Other | Number of IR cells: 4 |
| Other | Material of IR path |
| Dimensions | Width x height x depth: 58 x 52 x 75 cm |
| Weight | ~ 77 kg |
| Manufacturer | Verder Scientific Eltra |
