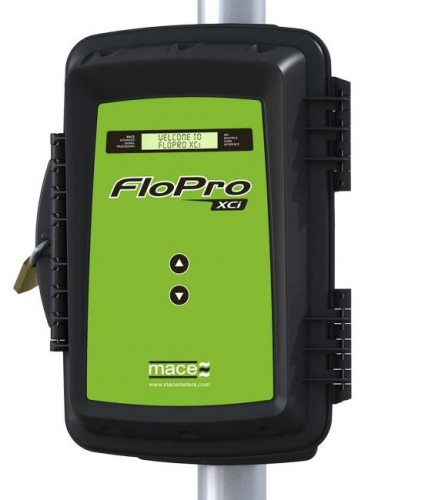

In-SituFloPro® XCi MACE® FloSeries® 3, 850-366

Features:

  • System can be used to monitor just about any water quantity whether full pipe, partially full pipe, or open channel along with quality sensor plus vital mining, municipal, and industrial equipment and assets
  • Fully expandable -- measure flow, as well as conductivity, pH, rainfall, depth of a pond or many other parameters
  • Easily interfaced with SCADA/telemetry systems
  • Utilizes state-of-the-art MACE Doppler ultrasonic velocity sensors for superior accuracy under a wide range of hydraulic conditions such as those in wastewater and stormwater flows, even when pipe slope is unknown, in surcharge, or flowing in reverse
  • Equipped with 5 card slots which accept any combination of 6 card types to efficiently monitor a vast array of water quantity and quality sensors:
  • Doppler Card -- supports one MACE Doppler ultrasonic sensor
  • I/O Card -- supports 7 snesor inputs and 4 control outputs including 4-20 mA, voltage and digital; also supplies 12V to power add-on sensors
  • Pulse I/O Card -- powers (+5VDC or +12VDC) a single pulsing flow sensor and provides a pulse output; allows FloPro® XCi the ability to sense pulses from non-MACE flow sensors
  • SDI-12 Master Card -- provides FloPro® XCi with ability to control/log In-Situ and 3rd party SDI-12 compliant sensors
  • FloSI Card -- provides an SDI-12 or ModBus output to inerface FLoPro XCi to SCADA systems
  • WebComm Card -- gives FloPro® XCi ability to remotely configure the device and run diagnostics as well as upload internal logged data to web-based data server via GSM/3G cell networks
  • FloPro® XCi has no moving parts and using the MACE Doppler ultrasonic velociy sensors, it produces minimal obstruction to the flow
  • MACE® velocity sensors use continuous wave Doppler ultrasound to measure the speed of dirt, bubbles or other particles in the stream flow -- in full pipe a golf ball sized velocity profile is "seen" and via a complex of algorithms velocity is calculated while in partially full pipes or open channels the sensors utilize MASP (MACE® Advanced Signal Processing) technology to "see" across the entire stream and give a true average velocity
  • Ready straight out of the box, FloPro®XCi houses the cards in a rugged, weatherproof, lockable enclosure -- includes data logger, LCD display, solar regulator, battery, and cards chosen for the application
  • Easily plug 'n' play In-Situ sensors using an SDI-12 card such as the Aqua TROLL® 600,Aqua TROLL® (depth, EC, and temperature) sensors, LevelTROLL® (depth, temperature) sensors -- up to 10 sensors per SDI-12 card using the powerful SDI-12 setup utility

    • Applications:

  • Stormwater monitoring
  • Sewer monitoring
  • Road culvert monitoring
  • Partially full pipe flow measurement
  • Lift station monitoring
  • And more
    • Please Note:
  • Many options and configurations of the FloPro® XCi and other MACE® FloSeries® 3 Systems are available.  Call to arrange a consultation with our staff today to find the best fit for your application!


    • General Specifications:

    Weight Approximately 5 kg (11 lbs.)
    Dimensions, H x W x D 365 mm x 260 mm x 170 mm
    (14.4 x 10.2 x 6.7 in.)
    Enclosure Rating IP66
    Enclosure Material UV stabilized polycarbonate
    Operating Temperature
    (with Internal Battery Installed)     		- 15 to 50 °C (5 to 122 °F)
    Operating Temperature
    (with Internal Battery Removed
    and External Power Used)     		- 20 to 65 °C (- 4 to 150 °F)
    Backlit Display 16 character x 2 line alphanumeric LCD
    Program Memory 2 MB flash (suffiecient for 600,000 discrete readings)
    Power Internal 12 Volt 7.2 Ah battery with external solar panel or
    mains charger
    Units of Measure User definable (metric/US)
    Application Software FlowCom+® PC software for system configuration, data
    downloading     and velocity profile testing
    Minimum system requirements: Windows® XP
    Factory Backup 24 months; parts and labor guaranteed

    Other Specifications:

    Depth Measurement Method Ceramic pressure transducer with large flat sensing
    diaphragm which allows straight, undeflected flow over sensing area to reduce drawdown effects at high stream velocities and provides for self-cleaning with an impervious Alumina ceramic surface
    Full Scale Range 4 m (13 ft.) above transducer face
    Accuracy 0.2% full scale at constant temperature in static stream 1% full scale over a stream 5 to 55 °C (41 to 130 °F)
    Resolution 1 mm (0.04 in.)
    Overrange 60 m (200 ft.) without damage
    Minimum Operating Depth 20 mm (0.79 in.)
    Velocity
    Measurement    		 Method Submerged Ultrasonic Doppler
    Range ± 0.025 to ± 8.0 m/s (± 0.08 to ± 26 ft./s)
    Accuracy ± 1% up to 3.0 m/s (± 1% up to 10 ft./s)
    Resolution 1 mm at 1.0 m/s (0.04 in. at 3.3 ft./s
    Urethane Sensor Cable,
    O.D. x L
    		 9 mm x up to 50 m (0.35 in. x  up to  164 ft.)
    Minimum Operating Depth
    		 40 mm (1.57 in.)
    Maximum Operating Temperature 60 °C (140 °F)
    Doppler Insert Velocity Sensor (Use in full or partially full pipes; when used in conjunction with EchoFlo® depth sensor) Pipe Size 0.1 to 2.54 m (4 to 100 in.) diameter
    Process Fitting 2" BSP or 2" NPT
    Maximum Process Fitting Pressure† 1034 kPa (150 psi)
    Maximum Operating Pressure‡ 253 kPa (37 psi)
    Shaft Dimensions, L x O.D. 330 mm x 20 mm (13 in. x 0.8 in.)
    Head Dimensions, O.D. x H 45 mm x 25 mm (1.8 in. x 1 in.)
    Wetted Materials Nickel plated brass and epoxy
    Pipe Intrusion Area 11.25 cm² (1.74 in.²)
    Doppler Area/
    Velocity Sensor     		Pipe Size 0.15 to 2.54 m (6 to 100 in.) diameter
    Maximum Channel Width◊ 3 m (10 ft.)
    Dimensions, L x W x H 125 x 50 x 20 mm (5 x 2 x 0.79 in.)
    Wetted Materials PVC, Alumina ceramic and epoxy
    Pipe Intrusion Area 8.6 cm² (1.33 in.²)
    Doppler Velocity Sensor Pipe Size 0.15 to 2.54 m (6 to 100 in.) diameter
    Maximum Channel Width◊ 3 m (10 ft.)
    Dimensions 125 x 50 x 17 mm (5 x 2 x 0.67 in.)
    Wetted Materials PVC and epoxy
    Pipe Instrusion Area 8 cm² (1.24 in.²)


    †  Pipe must be de-pressurized prior to insertion or removal

    ‡  Stream flow may be suitable for Doppler ultrasonic flow measurement in pressures >253 kPs (37 psi) if it contains at least 100 parts per million of suspended solids that are >75 microns in size


     ◊  MACE® Doppler ultrasonic sensors will operate in wider channels, but a reliable stream gauging must be performed for best system accuracy


    Specifications

    Range Velocity Measurement: ± 0.025 to ± 8.0 m/s (± 0.08 to ± 26 ft./s)
    Range Depth Measurement: 4 m Above Transducer Race
    Material UV stabilized polycarbonate
    Power Internal 12 Volt 7.2 Ah battery with external solar panel or mains charger
    Application Environmental monitoring
    Accuracy Velocity: ± 1% up to 3.0 m/s (± 1% up to 10 ft./s); Depth: 0.2% F.S.@ Constant Temp & Static Stream
    Manufacturer In-Situ, Inc
    Model No FloPro XCi 850-366
