Description

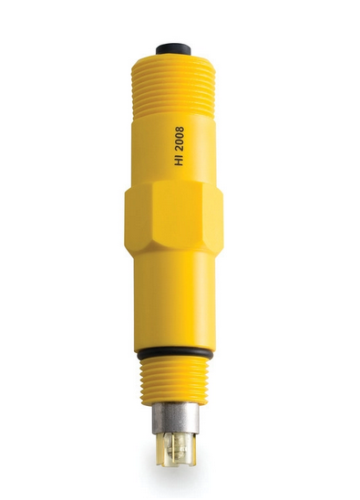

Hanna Instruments® Flow-thru Monitoring ORP Electrode for PCA Series Process Analyzers, HI2008
Features:
- Use with PCA330 analyzer to continuously measure the Oxidation-Reduction Potential (ORP) of the sample stream
- Gold sensor for measurement of cyanide or highly oxidative environments
- Ruggedly built for demanding industrial applications
- Spherical glass tip with Polyetherimide (PEI) sleeve for resistance to mechanical stress
- Mechanically strong body made from Polyvinylidene fluoride (PVDF) for resistance to chemicals, solvents, abrasion, fungal growth, ultraviolet and nuclear radiation
- Porous polytetrafluoroethylene (PTFE) junction helps prevent clogging
- Double junction technology and polymer reference allows use in industrial applications involving materials like heavy metals, organics and proteins
- Built-in amplifier reduces electrical inference from motors or pumps
- 1/2 in. NPT thread on front end allows for in-line installation while the 3/4 in. threads on the back end (cable side) allows for submersion mounting
Specifications
| Application | In-line ORP monitoring with process analyzer |
|---|---|
| Manufacturer | Hanna Instruments |
| Model No | HI2008 |
