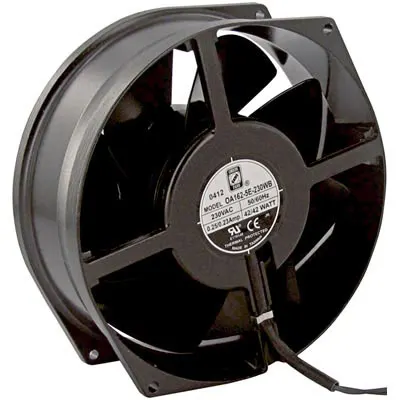

Description
| Product Attribute | Attribute Value |
|---|---|
| Air Flow | 241 CFM (6824 L/Min.) |
| Approximate Size | 6.8 x 6.8 In. (172 x 172 mm) |
| Approximate Thickness | 2.2 In. (56 mm) |
| Bearing Type | Dual Ball |
| Configuration | Round |
| Dimensions | 6.7 x 6.7 x 2.2 In. (172 x 172 x 55 mm) |
| Fan Type | AC |
| Frequency | 50;60 Hz |
| Material | Diecast Aluminum |
| Maximum Operating Temperature | 70 C |
| Minimum Operating Temperature | -40 C |
| Noise Level | 66 dBA |
| Power Rating | 31 W |
| Rotation | CW |
| Series | OA162 Series |
| Size | 6.7 x 2.2 (172 x 55) In. (mm) |
| Speed | 3400 RPM |
| Static Pressure | 0.73 In. H2O (182 Pa) |
| Termination | Wire Leads |
| Type | Round |
| Voltage Rating | 230 VAC |
Specifications
| Range | 241 CFM (6824 L/Min.) |
|---|---|
| Range | Operating Input Voltage - 160 to 260 V |
| Material | Diecast Aluminum |
| Power | 230 Vac; 50/60 Hz |
| Application | 3400 rpm CW Rotation / for Ash Fusion Systems |
| Operating Environment | -40 degrees C to 70 degrees C |
| Connectivity | Lead wires |
| Other | Noise Level at 66 dBA |
| Dimensions | 6.7 x 6.7 x 2.2 In. (172 x 172 x 55 mm) |
| Manufacturer | Orion (Knight Electronics) |
| Model No | OA162-5E-230WB |
