Description

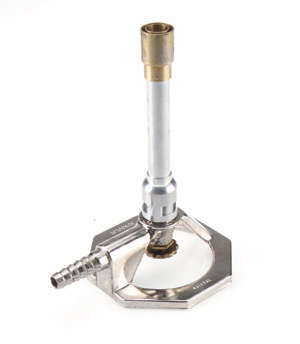

Humboldt® General Purpose Tirrill Burner, with Flame Stabilizer, H-6220
Features:
- Noiseless burners providing clear flames
- Separate control of both flame temperature and flame length
- Burners incorporate threaded aluminum air control sleeves and precision machined, fine-pitch brass needle valves with internal stuffing box and self-sealing packings
- Rustproof 3-1/2 in. (89 mm) octagon-shaped, plated die-cast bases
- Aluminum mixing tubes
Specifications
| Range | 800 to 1200 BTU output |
|---|---|
| Range | Flame height: 1/2 to 12 in. / 12.7 to 305 mm |
| Material | Nickel-plated die-cast alloy base with aluminum mixing tube |
| Other | Inlet: 5/16 in. Serrated |
| Dimensions | Overall height: 6 in. / 152 mm, mixing tube inside diameter: 5/16 in. / 11 mm |
| Manufacturer | Humboldt Manufacturing |
| Model No | H-6220 |
