Description

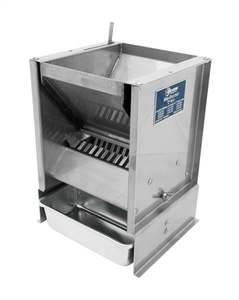

SP-3 Universal Splitter is the smallest Universal Splitter design, suited for materials up to 1/4in (6.4mm). This benchtop model features a spring-loaded gate release, stainless steel hopper and frame. The chute bars and sample pans are of anodized aluminum. The optional SPA-302 Dust Enclosure Kit consists of two stainless steel panels secured by springs. The panels slide up for easy access to the pans, and quickly detach when not needed.
| Applications | Powder material sizes. |
| Maximum Particle Size | 1/4in (6mm) |
| Hopper Capacity ft³ (L) | 0.06 (1.7) |
| Numbers of Chute Bars | 48 |
| Chute Bar Width Size | 1/8in (3mm) |
| Chute Slope | 60° |
| Dimensions | 9.5x8.5x13.5in (241x216x343mm), WxDxH. |
| Estimated Shipping Weight lb (kg) | 15lbs (7kg) |
Specifications
| Manufacturer | Gilson Company |
|---|---|
| Model No | SP-3 |
