Description

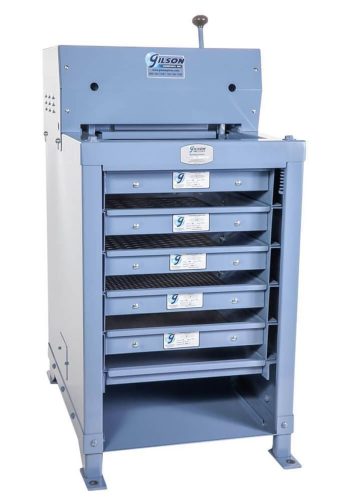

Coal samples for the laboratory have never been so easy to size using the Gilson Testing Screen Model TS-1. The Testing Screen (TS-1) handles sample batches up to one cubic foot and separates from two to seven sizes simultaneously in three to five minutes. Designed primarily for the 4 inch to No. 4 size range, the screen will handle smaller amounts of finer materials down to No. 200 mesh.
Features
- Makes tests quick and accurate while separating up to 7 sizes per test.
- Few moving parts, low maintenance, sturdy construction.
- Large selection of convenience accessories. Coarse series screens are available from 4" to No. 4, in steel wire cloth. Also available are the Intermediate series in No. 5, to No. 14, in brass wire cloth, and the Fine series from No. 16 to No. 100 in brass wire cloth. Size No. 200 is available only in phosphor bronze wire cloth. Screen trays are also available in round hole screens, from 4" to 1/8".
- Screen trays independently removable with visible separation to refusal.
- The TS-1 is a hydraulic clamping model.
Specifications
| Manufacturer | Gilson Company |
|---|---|
| Model No | TS-1 |
