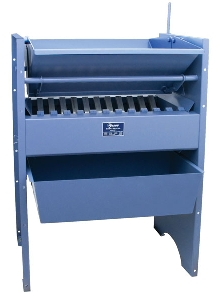

Gilson Sample Splitter Model SP-1, Adjustable Chute Openings

Gilson Sample Splitter Model SP-1 is to be used for the reduction of test samples that are too large to be conveniently handled. Divides sample so that each half is representative of original total sample. A single splitter handles any material, from sand up to heavy aggregate sizes. The splitter chute, consisting of aluminum or plated steel bars with a locating rod passed through their lower ends, provides wide flexibility in sizes of chute openings.

Features

• A single splitter handles any material, from sand up to heavy aggregate sizes. Adjustment is provided for any increment of "" which will divide into the total 24" chute width an even number of times.
• Heavy welded steel construction that stands to a convenient loading height.
• Loading hopper holds up to a cubic foot. Lever actuated clamshell hopper opens on center line of splitter chute.
• Material pans (2) slide under each half of splitter chute or a bag loading chute may replace a pan to return half of charge to sample bag.
• Dimensions: 39" high to top of hopper; 29" long overall, 19" wide. Shipping weight 136 lbs. fully assembled in crate.

Supplied with

• The Sample Splitter comes complete with one frame, hopper and chute assembly, two material pans and one bag-loading chute.
