Description

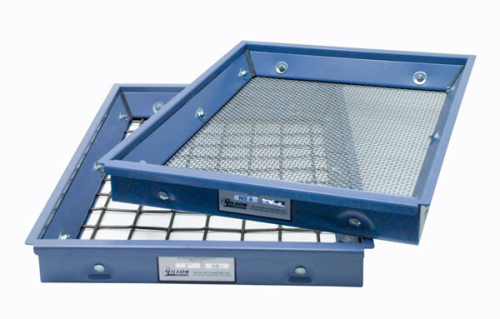

Screen Tray No. 120
Welded and bolted heavy gauge painted steel construction and are fitted with ASTM E11 Compliance Grade wire cloth.
Meets ASTM E11 wire cloth specifications
Features:
Rugged steel Screen Trays are designed for use in Gilson Testing Screen and Test-Master® models
Specifications:
Tray Type: Full Tray
ASTM E11 Opening Size: No.120 (125µm)
Clear Screen Size of Trays: 14.75 x 22.75in (375 x 578mm) WxD
Cloth Only Dimensions: 16 x 24in (406 x 610mm) WxD
Material: Stainless Steel
Product Dimensions: 17.75 x 26.25 x 2.625in (451 x 667 x 67mm) WxDxH
Specifications
| Compliant/Standard | ASTM E11 |
|---|---|
| Other | Cloth size, W x D: 16 x 24 in / 406 x 610 mm |
| Other | Clear screen size of tray, W x D: 14.75 x 22.75 in / 375 x 578 mm |
| Dimensions | W x D x H: 17.75 x 26.25 x 2.625 in / 451 x 667 x 67 mm |
| Weight | 18.0 lbs / 8.16 kg |
| Manufacturer | Gilson Company |
| Model No | TSA-103 #120 |
