Description

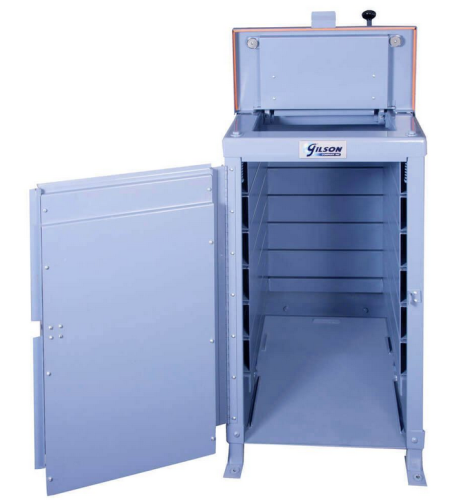

Gilson® Silent Testing Screen, Hydraulic Clamping, 7-Tray Capacity, 120 V, 60 Hz, 9.2 amps, TS-4
Features:
- Newest model testing screen introducing advanced safety and convenience along with proven reliability of other models
- Fully enclosed Silent Testing Screen is lined with sound damping material to reduce operational noise by 8 to 10 dB.
- Sealed door with heavy adjustable latch and wear-resistant gaskets confines and controls airborne, nuisance dust
- Strong ferrite magnets seucre top cover in open position for easy loading or secure it in closed position during testing further reducing both noise and dust
- Reinforced top frame allows a seventh tray slot for this model increasing load capacity to six trays plus dustpan increasing the throughput when test methods require an additional size fraction
- Proven, quick-acting hydraulic pump securely clamps screen trays for testing and quickly releases trays for easy removal
- Built-in electronic LED digital controller displays time remaining and sounds and audible tone when test cycle is complete
- Cycles can be programmed up to 99 minutes, 59 seconds and can be interrupted or paused and restarted without affecting total testing time
Specifications:
| Particle Size Range | 4 in. —#4 (100.0 — 4.75mm) |
| Screen Tray Capacity |
6 tray slots plus 1 for pan |
| Maximum Sample Volume | 1 ft3 (28.3 L) |
| Motion/Agitation | Vertical Vibration |
| Mounting Capability | Yes, must be bolted to floor |
| Electrical |
115V / 60Hz, 9.2 amps |
Specifications
| Range | Particle: 4 in. to #4 (100.0 to 4.75 mm) |
|---|---|
| Capacity | 6 screens + 1 pan |
| Power | 115V / 60Hz / 9.2 amps |
| Dimensions | W x D x H: 23.4 x 31.4 x 47.4 in (594 x 798 x 1204 mm) |
| Weight | 520.0 lb (235.87 kg) |
| Manufacturer | Gilson Company |
| Model No | TS-4 |
