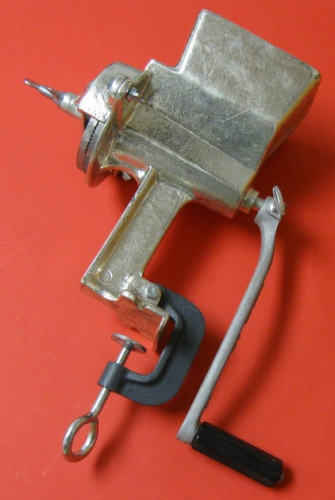

Grinding Mill Crusher, Hand Operated, with Stainless Steel Plates, QCG F4

Grinding Mill, Hand Operated Model F-4 Typical Applications:

• Coal
• Ores
• Soil Tests
• Lab sample preparation
• Soft or hard grains for cereal & bread
• Corn
• Coffee
• Pharmaceuticals
• Chemicals
• Nut leats
• Peanuts
• Iron turnings

Features:

• Largest capacity, easiest operating hand mill available
• Grinder construction is sturdy cast iron. Optional coating for food applications. 316 stainless steel construction available
• Grinding plates are made of hard iron alloy designed for clog resistance and long life
• Plate clearance easily adjusted by hand to change mesh
• Choice of 4-B Plates for fine grinding or 4-CS Plates for coarse grinding
• Choice of Tooth Feed for dry grinding or Worm Feed for wet or oily grinding
• Supplied with screw clamp for table top mounting

 Specifications: Capacity of Hopper:                  50 cu. in. (approx. 2 lbs.) Overall Height:                           14 in. Weight:                                        12 lbs. Table Top to Discharge:          4 in. Diameter of Grinding Plates:  4 in. Output Capacity:                        10 lbs. per hr. Maximum Fineness:                 75 to 100 mesh Output Capacity & Fineness of Grinding varies with material.
