Description

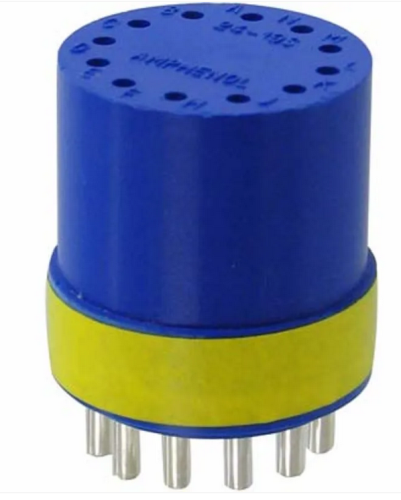

Amphenol Industrial® Head Jack Insert, Female, Size 24, 97 Series, Blue, Insulated, 12 #16 Solder Cup, Socketact, 97-24-19S
Features:
- Low cost, general duty non-environmental, Splash proof with the 417 suffix plus 97-67 cable clamp, Solder or crimp termination
- Wide selection of shell styles and insert patterns
- Wide selection of connector finishes - cadmium or non-cadmium (environmentally friendly zinc alloy)
- Threaded coupling, hard dielectric inserts, Solid or split shell construction
- Environmental capability with the 417 suffix plus 9767 cable clamp (see page 34)
- Solder or crimp termination
- UL Recognized, CSA Recognized
- Solid or split shell construction
- Accessories for both individual wire seal and jacketed cable
Specifications
| Material | Contact plating: silver, dialelectric material: Diallyl Phthalate , aluminum alloy housing |
|---|---|
| Power | 23 A, # 12 AWG wire size |
| Compliant/Standard | Ul Recognized, CSA Certified, IP67 |
| Operating Environment | Temperature: -55 to 125 degrees C |
| Other | Color: Blue with olive drab cadmium housing |
| Dimensions | Shell size: 24 |
| Manufacturer | Amphenol Industrial |
| Model No | 97-24-19S |
