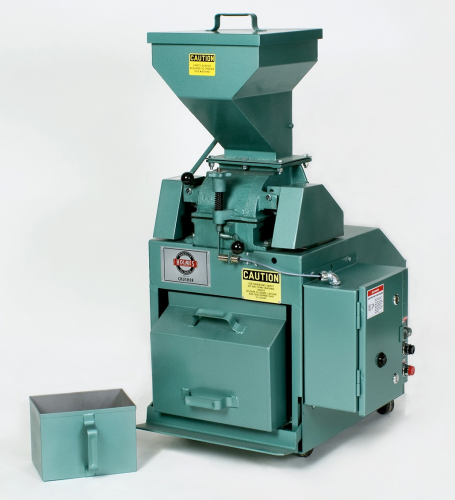

Holmes #201XLE2-FC, Crusher 7 x 6, 2 H.P., 230 V/1 PH/50 Hz

Model 201XL-4 has a capacity of 1000 pounds of coal, gypsum, or other materials per hour using a 3/16" diameter perforated screen plate; 500 pounds using a 1/16" diameter screen. It is recommended for crushing 2-inch and smaller material.

Features

• The covered feed hopper has a capacity of 0.40 cubic feet (20 pounds) and a manual-feed control gate.
• The cast ductile iron crusher housings are hinged and latched for quick access.
• Stressing safety in operation, its open latch sensor cuts power to the motor.
• The rotor-swing hammers are heat-treated and hardened.
• Rotor assemblies are reversible (end-for-end) for maximum hammer life.
• Screen plates have round-hole perforations. Available perforation diameters are (in inches) 1/16, 3/32, 1/8, 3/16, 1/4, 3/8, and 1/2.
• The container is sealed to the discharge spout while crushing.
• The Nema-12 magnetic starter provides a 120-volt control circuit and overload protection for the 2 HP, TEFC, 220V, single phase, 50Hz motor.
• The rotor speed is about 3450 rpm
• Overall Size: 43" H x 25" W x 28" D; Shipping Weight: 340 lb
• The crusher is mounted on four 2 1/2-inch diameter casters.
• Wired per NEC standards. Other wiring configurations are available.

Applications:

• Coal
• Gypsum
• Limestone
• Charcoal
• and more

Supplied with

• Two containers - 10 lb (4.5 kg) and 35 lb (16 kg) capacities.
• Two screen plates - 3/16" and 1/16" or customer specifications
• About 10 feet of cable to connect to the power source.

Additional Models

Catalog Number	Volts/Phase/Hertz
91-6730-01	230/3/60
91-6730-02	230/1/50
91-6730-03	230/1/60
91-6730-05	575/3/60
91-6730-06	208/3/60
91-6730-07	230/3/50
91-6730-08	230/3/60 Explosion Proof
91-6730-09	380/3/50
91-6730-10	115/1/60
