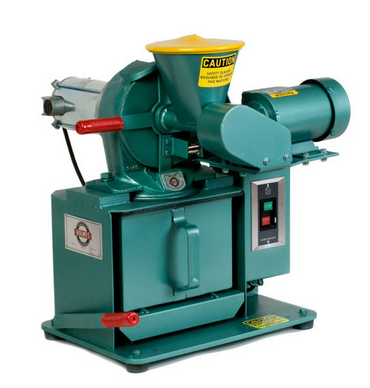

Holmes #500DGA1-BS, Direct Drive Pulverizer, 6 x 2, 1 H.P., 115 V/1 PH /60 Hz

Holmes #500DGA1-BS, Direct Drive Pulverizer, 6 x 2, 1 H.P., 115 V/1 PH /60 Hz

Model 500DG has a capacity of 400 grams of coal, gypsum, or other material per minute using a screen with 0.024 in. diameter perforations and is recommended to pulverize minus-4 mesh coal to minus-60 mesh.

Features:

• Feed hopper has vinyl snap-on cover
• Pulverizing chamber is completely machined and sealed
• Quick-opening latch provides easy access to pulverizer and interrupts power to both motors when door is open
• One-piece, dynamically balanced rotor is easily cleaned
• Screen plates are circles with loose ends held by two lock pins that extend into pulverizing chamber - Available perforation diameters are (in inches) 0.020, 0.024, 0.033, 0.040, 0.0625, and 0.093, also available are 0.010 X 17/32 inch slots
• 390-cubic inch (6390 cm³) sample cup is spring-loaded against seal - hand lever will release cup
• Feed auger is chain-driven from enclosed 1/8 HP, 2.7 amp, 115 volt, single phase, 60 Hz TEFC gear motor - auger speed is about 130 rpm
• Rotor is mounted on shaft of a HP, 115 volt, single phase, 60Hz, 12 amp, permanent magnet, open motor - speed is about 10,000 rpm.
• A Nema-1 motor starter has overload protection for each motor - open-latch sensor cuts power to motors
• Overall Size: 25H x 19W x 19-1/2D; Shipping Weight 130 lb.
• Pulverizer is mounted on four rubber base pads

Applications:

• Coal
• Gypsum
• Limestone
• Charcoal
• and more

Supplied with:

• A standard 60 cubic inch (980 cm³) capacity, feed hopper
• Five screen plates
• About 10 feet of cable to connect to the power source
