Description

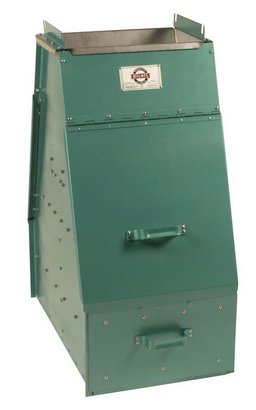

Model #50XL is a totally-enclosed, floor-model, sample riffle consisting of feed chutes, spouts, and drawers of type-304 stainless steel. This riffle has 14 spouts, 1"" wide for minus-4 mesh coal. Optional tilt lugs are available for containers and are bolted to the feed chute. A dolly, which will raise the riffle about three inches, is also optional. Features
- The safety enclosure is 18-gauge steel, painted on both sides.
- To inspect or clean the interior, simply lift out the feed chute, remove the drawers, and open the doors.
- Bolted construction is used for the enclosure and in areas out of the sample flow.
- Overall Size: 35 3/4H x 17W x 31D
Specifications
| Material | Stainless Steel |
|---|---|
| Application | For processing -4 mesh coal |
| Other | 14 spouts, 1" wide |
| Dimensions | 35 3/4H x 17W x 31D |
| Manufacturer | Holmes |
| Model No | 50XL-S |
