Description

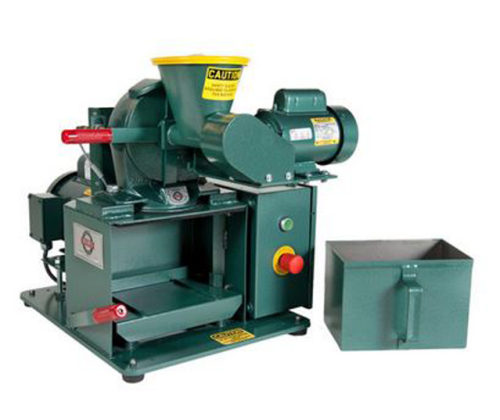

Holmes Model 502XLA2-BS Pulverizer, 230 V/1PH/60 Hz
Features
- Bench top model for small sample volumes of coal particles 3/16 in. and smaller
- Constructed of painted steel and cast iron, overall size is 24 in. H x 20 in. W x 28 in. D
- Weight is 150 lbs
- Processing rate is approximately 1 lb. per minute using a .024 in. hole screen plate
- Rotor is heat treated to achieve maximum life
- Standard electrical design meets NEC Class 2, Div. 2, Group F
- Sound level empty is 82-86 dBA at 6 feet away
Applications:
- Coal
- Gypsum
- Limestone
- Charcoal
- and more
Supplied With
- Includes a sample container that holds 325 cu.in.
Options
- Screen plate hole sizes ranging from .016 in. through 1/16 in.
- Several power options are available - please contact our representatives with your application
Specifications
| Material | Painted steel and cast iron |
|---|---|
| Power | 220Vac / 1PH / 60Hz |
| Compliant/Standard | NEC Class 2, Div. 2, Group F |
| Dimensions | 24 in. H x 20 in. W x 28 in. D |
| Weight | 150 lbs |
| Manufacturer | Holmes |
| Model No | 502XLA2-BS |
