Description

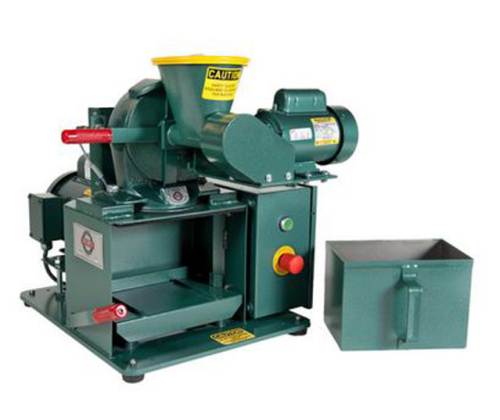

Model 502XLB2-BS, 230Vac, 1 Ph, 50Hz
Features
- Bench top model for small sample volumes of coal particles 3/16" and smaller.
- Constructed of painted steel and cast iron, overall size is 24"H x 20"W x 28"D
- Weight is 150lbs
- Processing rate is approximately 1 lb. per minute using a .024"" hole screen plate
- Rotor is heat treated to achieve maximum life
- Standard electrical design meets NEC Class 2, Div. 2, Group F
- Sound level empty is 82-86 dBA at 6 feet away
Applications:
- Coal
- Gypsum
- Limestone
- Charcoal
- and more
Supplied With
- Includes a sample container that holds 325 cu.in.
- Screen plate hole sizes ranging from .016" through 1/16"
- Several power options are available - please contact our representatives with your application.
Specifications
| Power | 220Vac / 1PH / 50Hz |
|---|---|
| Manufacturer | Holmes |
| Model No | 502XLB2-BS |
