Description
HACH® HQ2200 Dual Input, Portable Multi-Meter with Rugged Field Gel pH Electrode, 5 m Cable, LEV015.53.22009
Features:
- Robust and intuitive range of portable meters, instilling confidence in reporting and managing results
- HQ Series is for water quality professionals who want to perform electrochemical analysis for field and lab environments
- New portable platform will allow user to collect intuitive, accurate measurements, manage data, and easily review results, while supplying an IP67 robustness rating
- They provide true rugged, field-ready solution with on-screen, visual step-by-step operating guidance that provides users with confidence in reporting and managing their results
- Unlike other field meters with basic user interfaces and without easily accessible data, HQ Series secures, simplifies, and accelerates the complete measurement process for field users
- 4 models available:
- Three-input HQ4000 series
- Dual-input HQ2000 series
- Single-input HQ1000 series

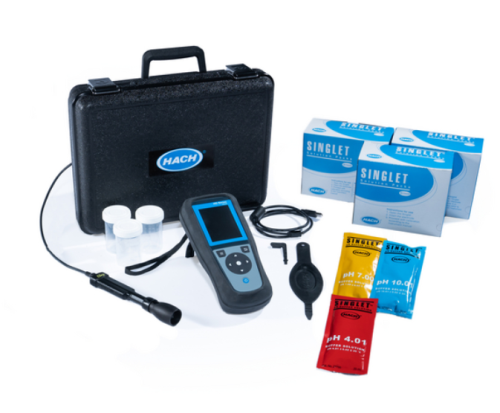

Included:
- LEV015.53.2200A HQ2200 Portable pH/ORP/EC/TDS/DO Multi-Meter, 2 channels
- PHC10105 IntelliCAL rugged field pH electrode, 5 m cable
- LEZ015.99.A002A HQ rugged electrode field case
- LEZ015.99A003A HQ hand strap & kickstand
- LEZ015.99.A004A HQ protective glove
- 2097000 Disposable wipes, 11 x 22 cm, 280/PK
- 2770020 Singlet single-use pH Buffer, pH 4.01, 20/PK
- 2770120 Singlet single-use pH Buffer, pH 7.00, 20/PK
- 2770220 Singlet single-use pH Buffer, pH 10.01, 20/PK
- 5828610 Cable marker for rugged electrode
- USB charger
- Power cable
- Clips
- User manuals
Specifications:
| Automatic Buffer Recognition | Yes |
| Backlight | Yes |
| Cable Length | 1 m |
| Calibration Intervals/Alerts/Reminder | Off, selectable from 2 hours to 7 days |
| Data Export | USB connection to PC or USB storage device (limited to the storage device capacity). |
| Data Memory | 10,000 data points |
| Data Storage | Automatic in Press to Read Mode and Interval Mode. Manual in Continuous Read Mode. |
| Display | Up to 3 parameters at a time, dependent on HQ model |
| Display Type | 536 x 336 Mono-TFT |
| DO Resolution | 0.1 |
| Enclosure Rating | IP67 (with battery compartment installed) |
| GLP Features | Date; Time; Sample ID; Operator ID, Calibration |
| Inputs | 2 |
| Instrument | Portable |
| ISE Direct Measurement Range | No |
| ISE Electrode Calibration | No |
| Kit? | Yes |
| Languages | English, Chinese - Simplified, Spanish, French, German, Italian, Japanese, Turkish, Dutch, Portuguese (PT & BR), Korean, Danish, Swedish, Polish, Norwegian, Hungarian, Greek, Finnish, Czech, Romanian, Croatian, Bulgarian, Slovak, Lithuanian, Estonian, Slovenian, Russian |
| Lock Function | Continuous / Auto-stabilization ("press to read") / At Interval |
| Measurement Method | Probe specific programmed method settings |
| Model | HQ2200 Multi/2 Channels |
| mV Measurement at Stable Reading | Yes |
| mV Measurement Range | Yes |
| mV Resolution | 0.1 mV |
| Operating Error Messages | Clear text error messages displayed |
| Operating Interface | Soft Touch Keypad |
| ORP Electrode Calibration | Predefined ORP standards (including Zobell's solution) |
| Parameter | pH |
| pH Buffer Sets | Colour-coded: 4.01, 7.00, 10.01 pH; IUPAC: 1.679, 4.005, 7.000, 10.012, 12.45 DIN: 1.09, 4.65, 9.23 User-defined custom buffer sets |
| pH Electrode calibration | 1 - 3 Calibration points Calibration summary data logged and displayed |
| pH Resolution | Selectable: 0.001/0.01/0.1 pH |
| Power Supply | Rechargeable lithium-ion battery 18650 (internal) Class II, USB power adapter: 100 - 240 VAC, 50/60 Hz input; 5 VDC at 2 A USB power adapter output (external) |
| Probe Type | Intellical Standard Laboratory or Rugged Field |
| Protection Class | IEC Class III (SELV (Separated/Safety Extra-Low Voltage) powered); external |
| Salinity Resolution | 0.01 (ppt) (‰) |
| Sensor A | PHC10105 |
| Sensor B | None |
| Sensor C | None |
| Storage Conditions | -20 - 60 °C, max. 90% relative humidity (non-condensing) |
| TDS Resolution | 0.01 mg/L - 0.1 g/L upon measuring range |
| Temperature Compensation | Automatic Temperature compensation for pH |
| Temperature Measurement | °C or °F |
| Temperature Resolution | 0.1 °C |
| Type of measurement | Field Measurements |
Specifications
| Range | pH: 0 - 14 pH |
|---|---|
| Range | DO: 0.1 - 20.0 mg/L (ppm), 1 - 200% saturation, Salinity: 0 - 42 (ppt) 0.1% |
| Range | TDS: 0.00 mg/L - 50.0 g/L NaCl |
| Power | Rechargeable lithium-ion battery 18650 (internal), Class II, USB power adapter: 100 - 240 VAC, 50/60 Hz input; (external |
| Compliant/Standard | CE, FCC, ISED, RCM, KC, ETL Verified: US DOE/ NRCan Energy Efficiency, RoHS |
| Operating Environment | 0 to 60 °C, Relative Humidity: 90% (non-condensing) |
| Connectivity | Output: USB connection to PC or USB storage device |
| Dimensions | H x W x D: 63 mm x 97 mm x 220 mm |
| Weight | 541 g (Meter only) |
| Manufacturer | HACH |
| Model No | LEV015.53.22009 (HQ2200) |
| Warranty | 12 months |
