Description

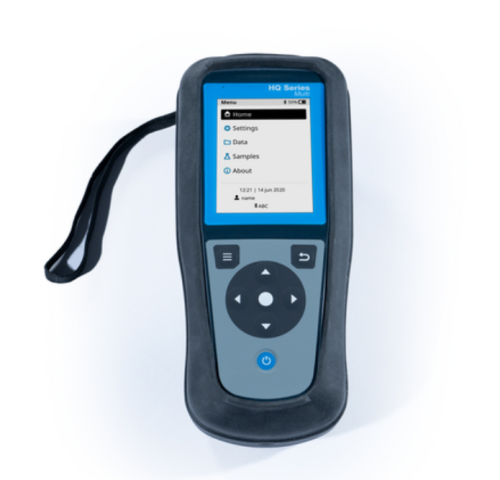

HACH® HQ4200 Portable Multi-Meter, pH, Conductivity, TDS, Salinity, Dissolved Oxygen (DO), ORP, and ISE, 2 Channels, without Electrodes, LEV015.53.4200A
Features:
- One of robust, intuitive range of portable meters, instilling confidence in reporting and managing results
- HQ Series is for water quality electrochemical analysis for field and lab environments
- New portable platform will allows collection of intuitive, accurate measurements, manage data, and easily review results
- IP67 robustness rating
- Rugged, field-ready solution with on-screen, visual step-by-step operating guidance that provides users with confidence in reporting and managing results
- Unlike other field meters with basic user interfaces and without easily accessible data, HQ Series secures, simplifies, and accelerates complete measurement process for field users
- Choose from 4 models, including three-input HQ4000 series, dual-input HQ2000 series, and single-input HQ1000 series—offering a range in measurement versatility and eliminating need for multiple pieces of equipment
Included:
- HQ4200 Portable pH/ORP/EC/TDS/DO/ISE Multi-Meter, 2 channels
- Manuals
- Li-Ion batteries
- USB charger with cable for USA
Specifications:
| Automatic Buffer Recognition | Yes |
| Backlight | Yes |
| Barometric Pressure Measurement | Automatic compensation of DO when using an LDO or LBOD probe |
| Calibration | Demal (1D/ 0.1D/ 0.01D); Molar (0.1M/ 0.01M/0.001M); NaCl (0.05%; 25µS/cm; 1000µS/cm; 18mS/cm); Standard sea water; User defined |
| Calibration Intervals/Alerts/Reminder | Off, selectable from 2 hours to 7 days |
| Conductivity Measurement Range | Yes |
| Custom Calibration Standards | Yes |
| Data Memory | 100,000 data points |
| Data Storage | Automatic in Press to Read Mode and Interval Mode. Manual in Continuous Read Mode. |
| Display | Up to 3 parameters at a time, dependent on HQ model |
| Display Type | 640x480 Color TFT |
| DO Resolution | 0.1 |
| Enclosure Rating | IP67 (with battery compartment installed) |
| GLP Features | Date; Time; Sample ID; Operator ID, Calibration |
| Inputs | 2 |
| Instrument | Portable |
| ISE Direct Measurement Range | Yes |
| ISE Electrode Calibration | Yes |
| Kit? | Meter only |
| Languages | English, Chinese - Simplified, Spanish, French, German, Italian, Japanese, Turkish, Dutch, Portuguese (PT & BR), Korean, Danish, Swedish, Polish, Norwegian, Hungarian, Greek, Finnish, Czech, Romanian, Croatian, Bulgarian, Slovak, Lithuanian, Estonian, Slovenian, Russian |
| Lock Function | Continuous / Auto-stabilization ("press to read") / At Interval |
| Measurement Method | Probe specific programmed method settings |
| Model | HQ4200 Multi/ISE/2 Channels |
| mV Measurement at Stable Reading | Yes |
| mV Measurement Range | Yes |
| mV Resolution | 0.1 mV |
| Operating Error Messages | Clear text error messages displayed |
| Operating Humidity | 90% (non-condensing) |
| Operating Interface | Soft Touch Keypad |
| Operating Temperature | 0 - 60 °C |
| ORP Electrode Calibration | Predefined ORP standards (including Zobell's solution) |
| Parameter | pH, Conductivity, TDS, Salinity, Dissolved Oxygen (DO), ORP, ISE |
| pH Buffer Sets | Colour-coded: 4.01, 7.00, 10.01 pH; IUPAC: 1.679, 4.005, 7.000, 10.012, 12.45 DIN: 1.09, 4.65, 9.23 User-defined custom buffer sets |
| pH Electrode calibration | 1 - 3 Calibration points Calibration summary data logged and displayed |
| pH Resolution | Selectable: 0.001/0.01/0.1 pH |
| Power Supply | Rechargeable lithium-ion battery 18650 (internal) Class II, USB power adapter: 100 - 240 VAC, 50/60 Hz input; 5 VDC at 2 A USB power adapter output (external) |
| Probe Type | Intellical Standard Laboratory or Rugged Field |
| Probes included | None |
| Protection Class | IEC Class III (SELV (Separated/Safety Extra-Low Voltage) powered); external |
| Salinity Resolution | 0.01 (ppt) (‰) |
| Sensor A | None |
| Sensor B | None |
| Sensor C | None |
| Storage Conditions | -20 - 60 °C, max. 90% relative humidity (non-condensing) |
| TDS Resolution | 0.01 mg/L - 0.1 g/L upon measuring range |
| Temperature Compensation | Automatic Temperature compensation for pH |
| Temperature Measurement | °C or °F |
| Temperature Resolution | 0.1 °C |
| Type of measurement | Field Measurements |
Specifications
| Range | pH: 0 - 14 pH |
|---|---|
| Range | Salinity: 0 - 42 (ppt) (% o) |
| Range | TDS: 0.00 mg/L - 50.0 g/L NaCl |
| Range | Dissolved Oxygen: 0.1 - 20.0 mg/L (ppm), 1 - 200% saturation |
| Power | Li - Ion Battery/USB charger |
| Compliant/Standard | CE, FCC, ISED, RCM, KC, ETL Verified: US DOE/ NRCan Energy Efficiency, RoHS |
| Operating Environment | 0 - 60 degrees C |
| Connectivity | USB connection to PC or USB storage device (limited to the storage device capacity) |
| Dimensions | H x W x D: 63 mm x 97 mm x 220 mm |
| Weight | 550 g Meter only |
| Manufacturer | HACH |
| Model No | LEV015.53.4200A |
| Warranty | 36 months |
