Description

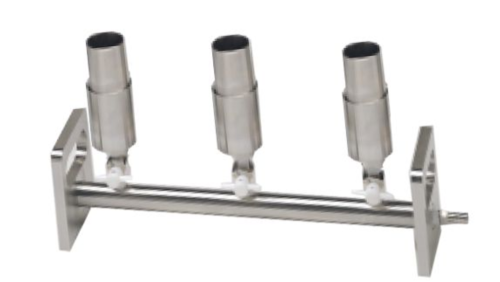

Advantec MFS® Hydrolab Manifold, 3-place, Stainless Steel, 40/35 3-Way Valve, 363130
Features:
- Autoclavable
- 2-way or 3-way valve available, use a 3-way valve when manifold is used under closed conditions and must be vented to atmosphere without breaking vacuum connection
- 3-way valve vent is female luer slip, accepts standard disposable syringe filter or stainless steel syringe filter holder
- Standard cup accepts a #8 stopper to adapt microanalysis units and other devices
- Exterior taper accepts a 40/35 female joint
- Sterility Test Manifold features rear mounted flushing manifold for use in USP bacteria retentive method
Included:
| 313101 | HANDLE STANDARD, SS MANI | 2 |
| 313003 | MAIN MANIFOLD 3 PLC, SS MANI | 1 |
| 613010 | SS BRANCH, MALE TAPER 40/35 | 3 |
| 313012 | PIPE PLUG ¼ in. NPTM 304SS, SS MANI | 1 |
| 304507 | HOSE BARB ADAPTOR 304SS (11MM) 1/4 in. NPTM | 1 |
| 313015 | SET SCREW FOR HANDLE, SS MANI | 4 |
| 313005 | STOPCOCK ASSEMBLY 3-WAY VALVE, SS MANI | 3 |
Specifications
| Material | Stainless Steel, type 304 |
|---|---|
| Other | Distance between filtering stations: 5-1/2 in. |
| Dimensions | L x W x H: 18 x 4 3/4 x 8 in. |
| Weight | 10.4 lbs |
| Manufacturer | Advantec MFS |
| Model No | 363130 |
