Description

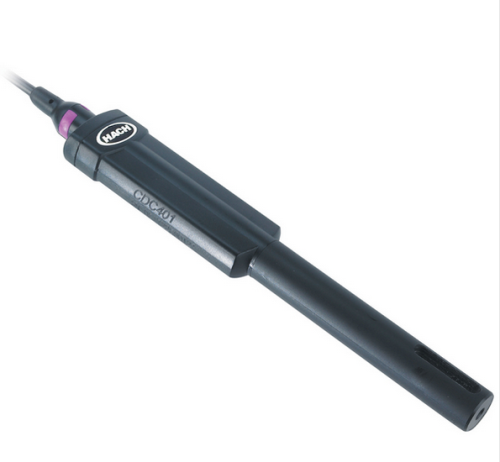

HACH® IntelliCAL® CDC401 Laboratory 4-Poles Graphite Conductivity Cell, 1 m Cable, CDC40101
Features:
- Digital, graphite, 4-pole conductivity cell with temperature sensor
- Laboratory version is available with a 3 or 1 m cable
- CDC401 is ideal for measuring electrical conductivity, salinity, resistivity, or total dissolved solids (TDS) in wastewater, drinking water, or general water quality applications
- Provides ultimate traceability in conductivity measurement history — for each measurement, stores time and date stamp, operator and sample ID, calibration history, parameter and probe serial number
- IntelliCAL probes can be moved between meters without re-calibration or re-entering measuring settings — ideal for multiple users or labs with multiple HQD series meters
- Alerts user when re-calibration is needed
Included:
- IntelliCAL CDC401 Laboratory Conductivity Cell with 1 m cable
- Test certificate
- Basic User Manual
Specifications:
| Cable Length | 1 m (3.28 ft) |
| Electrode Type | Conductivity Cell; 4 Poles - Graphite |
| Kit? | No |
| Method Type | Laboratory: 4 Poles - Graphite |
| Parameter | Conductivity |
| Probe Type | Standard |
| Product Kit | Model: CDC401 Accessories Included: None |
| Resolution | 0.01/0.1 (5 digits max.) |
| Sample depth | 45 mm (1.77 in.) |
| Sensor material | Noryl |
| Sensor Type | 4-poles conductivity probe, Graphite, k = 0.40 cm-1 |
| Temperature Accuracy | ±0.3 degrees C (±0.54 degrees F) |
| Temperature Range | -10 - 110 degrees C (14 - 230 degrees F) |
| Temperature Resolution | 0.1 degrees C (0.18 degrees F) |
| Test requirements | Parameter Needed: Conductivity; Minimum Sample Depth (mm): 45 |
| Thermistor | ATC |
Specifications
| Range | Conductivity: 0.0 µS/cm - 200 mS/cm |
|---|---|
| Range | Total Dissolved Solids (TDS): 0.00 mg/L - 50.0 g/L as NaCl |
| Range | Salintiy: 0 - 42 ppt or % |
| Range | Resistivity: 2.5 ohm cm - 49 megaohm cm |
| Accuracy | Conductivity: +/-0.5% of reading|TDS: +/-0.5% +/-1 digit|Salinity: +/-0.1, +/-1 digit |
| Dimensions | 184 mm (7.24 in.) length |
| Weight | 0.1 kg |
| Manufacturer | HACH |
| Model No | CDC40101 |
| Warranty | 12 months |
