Description

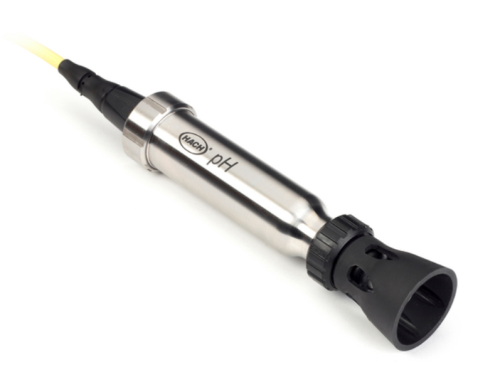

HACH® Intellical Field Low Maintenance Gel-Filled pH Electrode, 5 m Cable, PHC101
Features:
- Digital combination pH electrode with built-in temperature sensor
- Low maintenance needs thanks to non-refillable gel-filled single open reference junction
- Stainless steel body ensures sufficient weight to probe for an easy outside handling
- pH sensing part is protected by shroud
- Connection is ensured by strong and visible yellow coloured cable onto which depth markers can be attached (optional accessories), making the PHC101 rugged models specially designed for field use
- Available with 5, 10, 15, or 30-meter cables
- Ideal for measuring pH in all types of harsh, external environments such as river, surface and ground waters, ponds, lakes, sea, wastewater plant, source water, drinking water reservoir for water quality, environmental and treatment process purposes.
- Intellical digital probes provide ultimate traceability in measurement history
- Intellical digital probes alert user when re-calibration is needed
- Intellical digital probes can be moved between meters without need to re-calibrate or re-enter measurement settings
- Intellical rugged digital probes are waterproof up to 30 meters (IP67 rating)
Included:
- Intellical PHC101 Rugged pH electrode with storage cap
- 5 m cable
- Test certificate
- Basic User Manual
Specifications:
| Parameter | pH |
| Application | Clean or dirty sampling |
| Cable Length | 5 meters |
| Electrode Type | Non-refillable, gel reference element, rugged |
| Junction | Open junction |
| Kit | No |
| Electrode Length | 223 mm |
| Method Type | Field |
| Reference System | Ag/AgCl |
| pH Resolution | 0.001/0.01/0.1 |
| Sensor Material | Zeonor / stainless steel |
| Sensor Type | pH Glass |
| Sodium (Alkalinity) Error | -0.6 pH at pH 12.6 in 1 M NaOH |
| Special Features | Double junction reference |
| Temperature Resolution | 0.1 degree C |
| Minimum Sample Depth | 20 mm |
| Thermistor | ATC |
| Water Resistance | IP67, waterproof for 24 hours at a depth of 30 meters |
Specifications
| Range | pH: 2 to 14 pH |
|---|---|
| Range | Temperature: 0 to 50 degrees C |
| Accuracy | pH: +/- 0.02 pH, Temperature: +/- 0.3 degrees C |
| Compliant/Standard | IP67 |
| Dimensions | Electrode: 223 mm, Cable: 5 m |
| Weight | 0.9 kg |
| Manufacturer | HACH |
| Model No | PHC10105 |
| Warranty | 6 months |
