Description

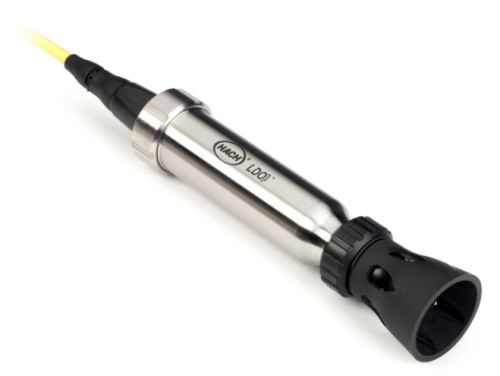

HACH® IntelliCAL® LDO101 Field Luminescent/Optical Dissolved Oxygen (DO) Sensor, 5 m Cable, LDO10105
Features:
- Luminescence-based LDO technology - no replacement of electrolyte, no membrane caps, no interference by deposits or H2S
- Digital — stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number
- Rugged DO sensor version is built with stainless steel body ensuring sufficient weight to probe for an easy outside handling
- Sensing part is protected by polymer shroud, and connection is ensured by strong and visible yellow-coloured, reinforced, steel-sheathed cable onto which optional clip depth markers can be used
- Available with 5, 10, 15, or 30 meters cable
- Fitted with automatic pressure sensor module and temperature sensor
- Fully calibrated at factory and probe alert for when re-calibration is required
- Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters — no need to recalibrate when moved from meter to meter
- New LDO101 probes no longer require iButtons?
- Days in use tracking feature and remaining sensor cap life reminder are initialized on day of first use
- Ideal for measuring dissolved oxygen in all type of external environment such as river, surface and ground waters, ponds, lakes, sea, wastewater plant, source water, drinking water reservoir for water quality, environmental and treatment process purposes
Included:
- IntelliCAL LDO101 Rugged Luminescent Dissolved Oxygen (LDO) probe with 5 m cable
- Protective shroud kit
- DO cap
- Basic User Manual
Specifications:
| Accuracy | ±0.1 mg/L from 0 to 8 mg/L|±0.2 mg/L for greater than 8 mg/L |
| Electrode Type | Luminescent Dissolved Oxygen |
| Kit? | No |
| Method Type | Field: Luminescent Dissolved Oxygen |
| Parameter | Dissolved Oxygen |
| Pressure accuracy | ±0.8% |
| Pressure Resolution | 1 mbar (1 hPa) |
| Probe Type | Rugged |
| Resolution | 0.01/0.1 (5 digits max.) |
| Sample depth | 10 mm (0.394 in.) |
| Saturation resolution | 0.1 |
| Sensor Type | Lumiphore |
| Temperature Accuracy | ±0.3 °C (±0.54 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Test requirements | Parameter Needed: Dissolved Oxygen Minimum Sample Depth (mm): 10 |
| Thermistor | ATC |
| Water Resistance | IP67, waterproof for 24 hours at a depth of 30 meters |
Specifications
| Range | Dissolved Oxygen (DO): 0.05 - 20.0 mg/L |
|---|---|
| Range | Temperature: 0 - 50 degrees C (32 - 122 degrees F) |
| Material | Body: stainless steel, Sensor: polycarbonate / ABS / stainless steel |
| Compliant/Standard | IP67 |
| Dimensions | Probe length: 223 mm (8.73 in.), Cable length: 5 m (16.40 ft) |
| Weight | 0.8 kg |
| Manufacturer | HACH |
| Model No | LDO10105 |
| Warranty | 36 months |
