Description

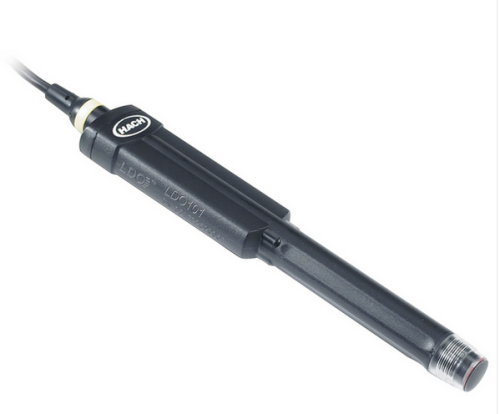

HACH® IntelliCAL® LDO101 Laboratory Luminescent/Optical Dissolved Oxygen (DO) Sensor, 3 m Cable, LDO10103
Features:
- Fitted with automatic pressure sensor module and temperature sensor
- Fully calibrated at factory
- No longer require iButtons® — days in use tracking feature and remaining sensor cap life reminder are initialized on day of first use
- No membranes to clean or replace, no electrolyte solution to replenish, and reduces calibration frequency
- Alerts user when calibration is needed
- Stores time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number for ultimate traceability
- Ideal for a multi-user environment with multiple HQD series Laboratory and Portable meters — no need to recalibrate when probe is moved from one meter to another
Included:
- IntelliCAL LDO101 Rugged Luminescent Dissolved Oxygen (LDO) probe
- 5 m cable
- Protective Shroud Kit
- DO cap
- Basic User Manual
Specifications:
| Cable Length | 3 m (9.84 ft) |
| Electrode Type | Luminescent Dissolved Oxygen |
| Kit? | No |
| Method Type | Field: Luminescent Dissolved Oxygen |
| Parameter | Dissolved Oxygen |
| Pressure Resolution | 1 mbar (1 hPa) |
| Probe Type | Standard |
| Product Kit | Model: LDO101, Accessories Included: None |
| Resolution | 0.01/0.1 (5 digits max.) |
| Sample depth | 10 mm (0.394 in.) |
| Saturation resolution | 0.1 |
| Sensor material | Polycarbonate / ABS |
| Sensor Type | Lumiphore |
| Temperature Resolution | 0.1 degrees C (0.18 degrees F) |
| Test requirements | Parameter Needed: Dissolved Oxygen, Minimum Sample Depth (mm): 10 |
| Thermistor | ATC |
Specifications
| Range | Dissolved Oxygen (DO): 0.05 to 20.0 mg/L / 1 - 200% saturation |
|---|---|
| Range | Temperature: 0 - 50 degrees C (32 - 122 degrees F) |
| Accuracy | DO: 0.1 mg/L from 0 to 8 mg/L|±0.2 mg/L for greater than 8 mg/L, Pressure: +/-0.8%, Temp: +/-0.3 deg C (+/-0.54 deg F) |
| Dimensions | 191 mm (7.52 in.) Length |
| Weight | 0.15 kg |
| Manufacturer | HACH Company |
| Model No | LDO10103 |
| Warranty | 36 months |
