Description

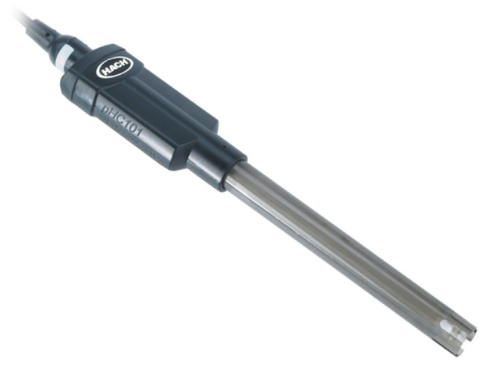

HACH® IntelliCAL® PHC101 Laboratory Low Maintenance Gel Filled pH Electrode, 3 m Cable, HACH, PHC10103
Note:
- Digital combination pH electrode with built-in temperature sensor
- PHC101 has low maintenance needs thanks to non-refillable gel-filled single open reference junction
- Laboratory version of this pH electrode is shockproof with its epoxy plastic body protecting down to glass bulb sensing element
- Electrode is available with 3 or 1 m cable
- Fast and reliable for clean or dirty water — PHC101 electrode is ideal for measuring pH in wastewater, drinking water and general aqueous applications
- Unique solid gel probe and open reference junction specifically designed for pH measurement in wastewater
- The PHC101 is not suitable for use with organic solvents or samples with pH less than 2
- IntelliCal alerts user when calibration is needed
- Stored time and date stamp for each measurement, operator and sample ID, calibration history, parameter, and probe serial number
- Can be moved between meters without the need to re-calibrate or re-enter measurement settings — ideal for multiple users/multiple meters
Included:
- IntelliCAL PHC101 Laboratory pH electrode
- Storage soaker bottle
- 3 m cable
- Test certificate
- Basic User Manual
Specifications:
| Application | Clean & Dirty Samples |
| Electrode Type | Non-Refillable Gel Reference Element |
| Junction | Open Junction |
| Kit? | No |
| Method Type | Field: Non-Refillable Gel Reference Element |
| Parameter | pH |
| Probe Type | Standard |
| Product Kit | Model: PHC101 Accessories Included: None |
| Reference Type | Ag/AgCl |
| Resolution | 0.001/0.01/0.1 |
| Sample depth | 20 mm (0.79 in.) |
| Sensor material | Epoxy |
| Sensor Type | pH Glass |
| Sodium (Alkalinity) error | -0.6 pH at pH 12.6 in 1 M NaOH |
| Special Features | Double junction reference |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Test requirements | Parameter Needed: pH Minimum Sample Depth (mm): 20 |
| Thermistor | ATC |
Specifications
| Range | pH: 2 to 14 pH |
|---|---|
| Range | Temperature: 0 - 50 degrees C (32 - 122 degrees F) |
| Accuracy | pH: +/- 0.02 pH, Temperature: +/- 0.3 degrees C / +/- 0.54 degrees F |
| Dimensions | Probe Length: 175 mm / 6.89 in., Cable Length: 3 m / 9.84 ft |
| Weight | 0.15 kg |
| Manufacturer | HACH |
| Model No | PHC10103 |
| Warranty | 6 months |
