Description

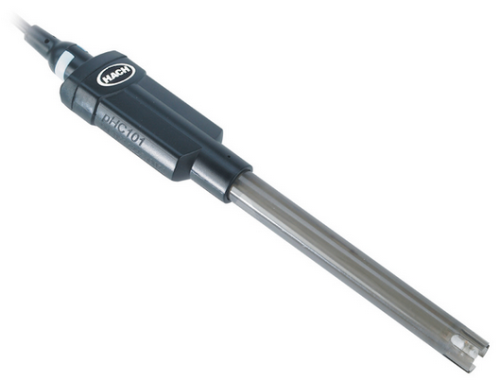

HACH™ Intellical™ PHC101 Laboratory Low Maintenance Gel Filled pH Electrode, 1 m Cable
Features:
- Digital combination pH electrode with built-in temperature sensor
- Low maintenance needs thanks to a non-refillable gel-filled single open reference junction
- Laboratory version of this pH electrode is shockproof with its epoxy plastic body protecting down to the glass bulb sensing element
- Available with a 1 or 3 m cable
- Ideal for measuring pH in wastewater, drinking water and general aqueous applications
- Not suitable for use with organic solvents or samples with pH less than 2
- Provides fast, stable response in wastewater applications
- Provides ultimate traceability in measurement history
- Alerts the user when re-calibration is needed
- Can be moved between meters without the need to re-calibrate or re-enter measurement settings
Specifications:
| Accuracy |
±0.02 pH units |
| Cable Length | 1.0m (3.28 ft) |
| Electrode Type |
Non-refillable, gel-filled reference element |
| Junction Type | Open junction; Double junction reference |
| Probe Length |
175 mm (6.89 in.) |
| Range | 2 to 14 pH units |
| Resolution | 0.001/0.01/0.1 |
| Reference Type |
Ag/AgCl |
| Sample Depth |
20 mm (0.79 in.) |
| Sensor Material | Epoxy |
| Sensor Type | pH Glass |
| Sodium (Alkalinity Error) |
-0.6 pH at pH 12.6 in 1 M NaOH |
| Temperature Accuracy | ±0.3 °C (±0.54 °F) |
| Temperature Range | 0 to 50 °C (32 to 122 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Thermistor | ATC |
| Weight | 0.1 kg |
| Included | IntelliCal pH electrode with storage soaker bottle, 1 m cable, test certificate and basic user manual |
Specifications
| Range | pH: 2 to 14 pH units |
|---|---|
| Range | Temperature: 0 to 50 °C (32 to 122 °F) |
| Material | Epoxy Body with Glass Sensor |
| Application | Wastewater, drinking water and general aqueous applications |
| Accuracy | pH: ±0.02 pH units; Temperature: ±0.3 °C (±0.54 °F) |
| Weight | 0.1 kg |
| Manufacturer | HACH |
| Model No | PHC10101 |
