Description

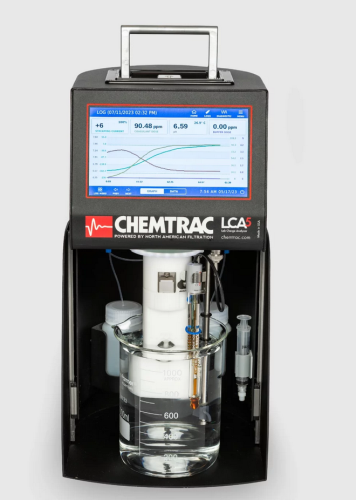

Chemtrac® Laboratory Charge Analyzer with Optional pH and Temperature, LCA5.2001
Features:
- Essential coagulation optimization tool for water treatment
- Allows quick response time to rapidly changing raw water conditions
- Accommodates 1,000 to 2,000 mL sample volumes
- Integrated sample stirrer
- High resolution 7 in. capacitive touchscreen,WVGA 800 x 480
- Graphical trending and data logging
- Advanced signal health diagnostics
- Export results to a USB flash drive
- Tutorial videos play directly on display
- In under 5 minutes, coagulant dosage needed to achieve charge neutralization can be determined by either manually or automatically titrating raw water sample with coagulant until zero (0) charge reading is obtained
- Optional pH measurement along with automatic titration allows LCA5 to also determine buffer (e.g., caustic, lime) dosage in applications where pH adjustment is required due to low alkalinity conditions
- Other options include automatic titration with coagulant and buffers, syringe pump for neat titration and protective transport case
- Sensor: Streaming Current, immersion, quick connect
- Sensor wetted: Delrin, 316 Stainless Steel
Note:
- Optional items must be stipulated at time of purchase
Specifications
| Range | pH probe: Glass body, 0 to 14 pH range, internal reference, ceramic junction |
|---|---|
| Range | Temperature: RTD, 316 SS Body |
| Power | 100 - 240 V, 50 - 60 Hz, 1 Amp Maximum |
| Operating Environment | Temperature: 34 to 120 degrees F / 0 to 50 degrees C |
| Other | Fully extended height: 23 in. / 584 mm |
| Dimensions | W x D x H: 8-1/2 x 9-1/2 x 15 in. / 215 x 241 x 381 mm |
| Weight | 16 lbs / 7.3 kg |
| Manufacturer | Chemtrac |
| Model No | LCA5.2001 |
