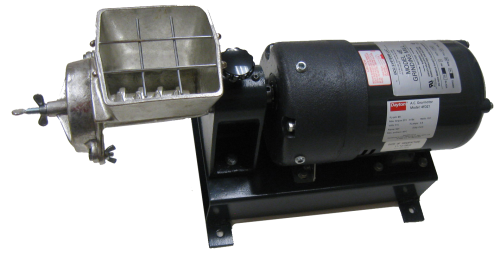

Laboratory Plate Grinding Mill Crusher, 230 V/1 Ph/60 Hz

Typical Applications:

• Coal
• Ores
• Soil tests
• Lab sample preparation
• Soft or hard grains for cereal & bread
• Corn
• Coffee
• Pharmaceuticals
• Chemicals
• Nut meats
• Peanuts
• Soil tests
• Iron turnings

Features:

• Grinding unit construction is sturdy cast iron, heavily coated for food handling.
• Grinding unit can be removed and disassembled for cleaning without the use of tools.
• Grinding plates are made of hard iron alloy designed for clog resistance and long life.
• Plate clearance easily adjusted by hand to change mesh.
• Rigid cast aluminum base and bearing for minimum weight.
• 3- Point rubber pads for stability.
• Low current requirements, needs no special wiring.
• Choice of 4-B Plates for fine grinding or 4-CS Plates for coarse grinding.
• Choice of Tooth Feed for dry grinding or Worm Feed for wet or oily grinding.

Specifications: 230 Volt, 1 Phase, 60 Cycle Other voltages and frequencies available.   Capacity of Hopper:                     50 cu. in. (approx. 2lbs.) Overall Height:                             12 in. Overall Length:                             25 in. Overall Width:                                8 in. Weight:                                           55 lbs. Table Top to Discharge:             6 in. Diameter of Grinding Plates:     4 in. Output Capacity:                           40 lbs. per hr. Maximum Fineness:                    75 to 100 mesh Output Capacity & Fineness of Grinding varies with material.
