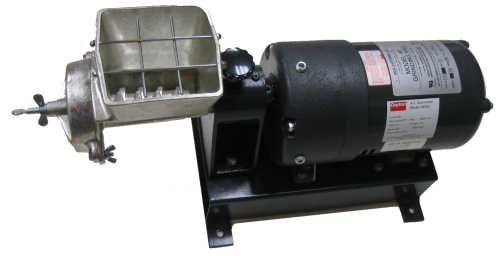

Laboratory Plate Grinding Mill Crusher, with Tooth Feed and Fine Plates, 115 V/1 Ph/60 Hz
Roll over image to zoom in Click on image to zoom
Laboratory Plate Grinding Mill Crusher, with Tooth Feed and Fine Plates, 115 V/1 Ph/60 Hz

Laboratory Plate Grinding Mill Crusher, with Tooth Feed and Fine Plates, 115 V/1 Ph/60 Hz

Item: 91-6450-45-EA
UOM: EA (1)
Price:
$2,443.77

Description

Grinding Mill Model 4-ETypical Applications:
  • Coal
  • Ores
  • Soil tests
  • Lab sample preparation
  • Soft or hard grains for cereal & bread
  • Corn
  • Coffee
  • Pharmaceuticals
  • Chemicals
  • Nut meats
  • Peanuts
  • Soil tests
  • Iron turnings
Features:
  • Grinding unit construction is sturdy cast iron, heavily coated for food handling.
  • Grinding unit can be removed and disassembled for cleaning without the use of tools.
  • Grinding plates are made of hard iron alloy designed for clog resistance and long life.
  • Plate clearance easily adjusted by hand to change mesh.
  • Rigid cast aluminum base and bearing for minimum weight.
  • 3- Point rubber pads for stability.
  • Low current requirements, needs no special wiring.
  • 4-B Plates for fine grinding.
  • Tooth Feed for dry grinding.
Specifications: 115 Volt, 1 Phase, 60 Cycle, Standard Other voltages and frequencies available. 1/3 H.P. Gearmotor 89 RPM Output speed 3 wire electrical cord (8 ft) with inline switch & grounding plug   Capacity of Hopper:                     50 cu. in. (approx. 2lbs.) Overall Height:                             12 in. Overall Length:                             25 in. Overall Width:                                8 in. Weight:                                           55 lbs. Table Top to Discharge:             6 in. Diameter of Grinding Plates:     4 in. Output Capacity:                           40 lbs. per hr. Maximum Fineness:                    75 to 100 mesh Output Capacity & Fineness of Grinding varies with material.
