Description

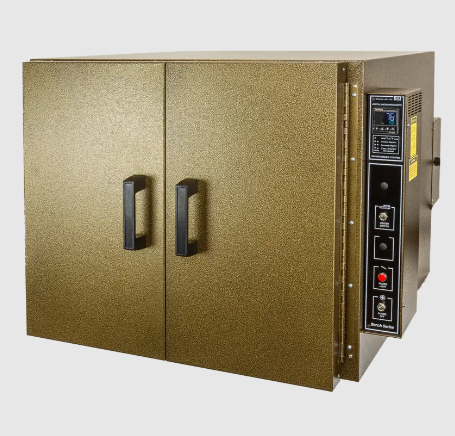

Quincy Lab® Large Capacity Digital Benchtop Oven, 10.6 cu. ft., 115 V, 31-350ER
Features:
- Digital PID microprocessor provides ease of temperature setting, ramp and soak capability and countdown timer
- Fan-forced air circulation
- Aluminized interior (available in stainless steel)
- Incoloy sheathed heating elements
- 6-lb high-density mineral wool insulation
- Gasketed Steel Doors
- Adjustable 80-lb capacity shelves
- Heat/cool down switch
- Rapid run-up and recovery times
- Baked in scratch-resistant powder coated finish
- Equipped with 'J'-type thermocouple
- When paired with the free downloadable software, temperature monitoring and tracking can be remotely controlled via an RS485 connection
Applications:
- Preheating
- Thermal testing
- Self-batch processing
- Part drying
- Curing
- Baking
- Evaporating or dehydrating various media and soil aggregate
- and more
Specifications:
| Shelves |
2 included; maximum 17 at 1- 1/2" on center spacing |
| Shelf Capacity | 80 lbs/shelf |
| Control Stability | @ 100 degrees C: ± 2.5/2.0 degrees C; @ 200 degrees C: ± 3.0/0.5 degrees C |
| Uniformity | @ 100 degrees C: ± 3.0/0.5 degrees C; @ 200 degrees C: ± 4.0/3.0 degrees C |
| Time to Temperature | Ambient to 100 degrees C: 9 minutes/10 minutes; Ambient to Maximum: 35 minutes/38 minutes |
| Recovery at Door Opening @ 150 degrees C |
Open 15 seconds: 3 minutes/4 minutes; Open 30 seconds: 4 minutes/5 minutes |
| Repeatability @ 150 degrees C (Set Point Drift)** |
± 1.5/0.5 degrees C |
| Air Changes, Maximum/Hour @ 150 degrees C with No Load |
8 to 12 |
| Maximum Chamber Air Velocity |
7 feet/second |
| Evaporation Rate @ 110 degrees C ± 0.5 degrees (230 degrees F ± 9 degrees) per ASTM C88 |
30 to 35 g/h |
** Repeatability or set point drift measured for 24 hours with controlled lab ambient temperatures not varying more than 2 degrees C and supply voltage by not more than 2%.
Specifications
| Range | Temperature: Ambient + 25 degrees F to 450 degrees F (232 degrees C) |
|---|---|
| Capacity | 10.6 cu. ft. (300 L) |
| Power | 115 V / 16 A / 1200 W, NEMA 5-20P Plug |
| Compliant/Standard | ASTM C88 |
| Other | Interior W x H x D: 25.5 x 30 x 24 in. (64.7 x 76 x 61 cm) |
| Dimensions | Exterior W x H x D: 33 x 34 x 35.5 in. (83 x 86 x 90 cm) |
| Weight | 200 lb (Shipping: 225 lb) |
| Manufacturer | Quincy Lab Inc |
| Model No | 31-350ER |
| Warranty | 24 month |
