Description

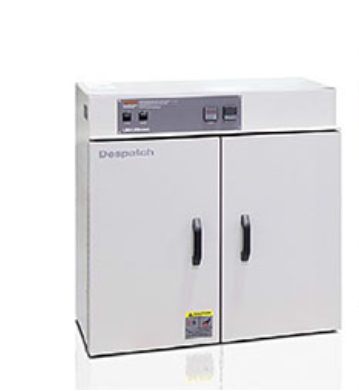

Despatch® LBB Forced Convection Benchtop Oven, 120 V, LBB1-23-3
Features:
- Forced convection from top mounted fan and plenums on sides of chamber (vertical and horizontal airflow) - top-mounted fan draws air through the heater coils and propels it back to chamber through plenums in side walls, resulting in consistent, uniform temperatures.
- Temperatures up to 204 ? (400 ?)
- Powerful open coil heating elements and forward curved fan deliver faster heat-up rates and short proce
- 304 Stainless steel interior
- Digital control with 3/4 inch (1.9 cm) LED display which regulates temperatures within tight tolerance
- Nickel plated shelves - by model rated to 50 or 200 lbs (23 or 91 kg)
- High-limit control
- Five year heater warranty
- UL and C-UL listed
- Use for drying, curing, annealing and materials testing
- Manufactured in US
Specifications:
| Maximum Number of Shelves (Two Provided) | 5 on 2 in. centers |
| Shelf Dimensions (Width x Depth) | 17.75 x 17.75 in. / 5 x 45 cm |
| Cord and Plug | 15 amp |
| Time to Temperature with No Load (40 ?C to 150 ?C) | 17 minutes |
| Time to Temperature with No Load (40 ?C to 204 ?C) | 31 minues |
| Recovery Time After Door Open 1 Minute (150 ?C) ** | 2 minutes |
| Recovery Time After Door Open 1 Minute (204 ?C) ** | 4 minutes |
| Temperature Uniformity Based on 9 Point Test in Empty Oven |
±3 ?C at 150 ?C / ± 4 ?C at 204 ?C |
| Control Stability | ±0.5 ?C |
| Maximum Load Capacity | 200 lbs / 91 kg |
| Maximum Shelf Capacity | 50 lbs / 23 kg |
| Exhaust Capacity | Adjust to 1 CFM / 0.5 lps |
**Recovery time as measured at control thermocouple
Specifications
| Range | 35 degrees C to 204 degrees C |
|---|---|
| Capacity | 2.3 cu.ft. / 65 L |
| Power | 120 V, 50/60 Hz, 1 phase, 11.6 amps, 1.2 kW heater |
| Compliant/Standard | UL and C-UL |
| Dimensions | W x D x H: Opening: 18 x 18 x 12 in. / 46 x 46 x 30 cm, overall: 24 x 26 x 26 in. / 61 x 66 x 67 cm |
| Weight | Net: 140 lbs / 63 kg, Shipping: 205 lbs / 92 kg |
| Manufacturer | Despatch |
| Model No | LBB1-23-3 |
| Warranty | 5 years |
