Description

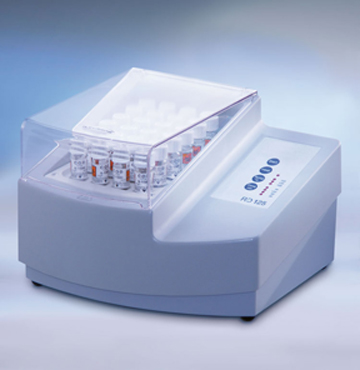

Lovibond® Tintometer® Thermoreactor RD 125 for COD and Other Tests Requiring Digestion, 2418940
Features:
- Use for chemical digestion of water samples for photometric determination of multiple parameters, such as COD (150 °C), TOC (120 °C), Total Phosphate (100 °C), or Total Nitrogen (100 °C), thanks to user-selectable, pre-programmed temperature and timer settings that are accessible from membrane keypad
- There are three pre-set temperatures (100 / 120 / 150 °C) and three pre-set reaction times (30 / 60 / 120 min.)
- When digestion is complete, reactor automatically switches off and gives corresponding LED indication with short beep alarm
- Reactor is fitted with 24 holes for 16 mm diameter vials
- Voltage selector switch located on the back of the unit allows for operation at 115 V / 230 V, 50 / 60 Hz
- 24 - 16 mm diameter tube capacity
- Protective shield and overheating protection
- 2-year warranty
Specifications:
| Suitable Vials | Round cuvettes 16 mm |
| Holes in block | 24 - 16.2 mm Ø ±0.2 mm |
| Selectable temperatures, °C | 100 / 120 / 150 |
| Probe type | Pt100 A class |
| Temperature stability at the Pt100, °C | ±1 |
| Selectable cycle times, min. | 30 / 60 / 120 / continuous (∞) |
| Heating up time from 20 °C to 150 °C, min. | 12 |
| Thermoregulation | Microprocessor |
| Protection against overheating, °C | At the aluminum block for 190 |
| Beeper | Maximum 88 dB (piezo buzzer) |
Supplied with:
- Power cord
- Instruction manual
Specifications
| Range | Temperatures: 100 / 120 / 150 degrees C (selectable) |
|---|---|
| Material | Housing: ABS, Protection grid: PPS, Lid: PC, Block Insert: PBT, Heating Block: Aluminum |
| Power | 230 V/ 50-60 Hz or 115 V/ 50-60 Hz (selectable), 550 W |
| Compliant/Standard | CE |
| Operating Environment | 10 to 40 degrees C, Maximum 85% Relative Humidity |
| Dimensions | 248 x 219 x 171 mm |
| Weight | 3.9 kg |
| Manufacturer | Lovibond |
| Model No | 2418940 |
| Warranty | 2 years |
