Description

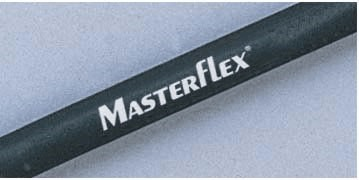

Masterflex® FDA-Compliant Viton® Precision Pump Tubing, L/S 16, 25 ft.
Features:
- Manufactured to tight tolerances that match the Masterflex® L/S pump heads for accurate flow rate and long tubing life
- Flow ranges are approximate — calculated under the following conditions: 0 psig at inlet, 0.5 psig at outlet; water temperature at 72 °F (22 °C)
- Good chemical resistance
- Opaque black
Applications:
- Food or laboratory where FDA compliance is required
- Acid and solvent transfer
- high-temperature work
Specifications:
| Pump Series | L/S |
| L/S Masterflex® Tubing Size | 16 |
| Tubing Formulation | FDA-compliant Viton® |
| Hose Barb Size, in. | 0 |
| Tubing Inside diameter | 3.1 mm (0.122 in) |
| Maximum Flow Rate (mL/min) | 480 |
| Maximum Pressure | 40 PSI (2.7 bar) |
| Maximum Vacuum | 660 mm Hg (26 in. Hg) |
| Dynamic Temperature Range | 0 to 150 °C (32 to 302 °F) |
| Temperature Range | -32 to 205 °C (-25 to 401 °F) |
| Suction Lift | 8.8 m H2O (29 ft H20) |
| Length Per Pack | 7.6 m (25 ft) |
| Resin Cerification | 1935/2004; ADCF; FDA; Non-DEHP; RoHS; EU Food 10/2011; European Phamacopoeia; NSF-51; Non-Phthalate; 3A; USP |
