Description

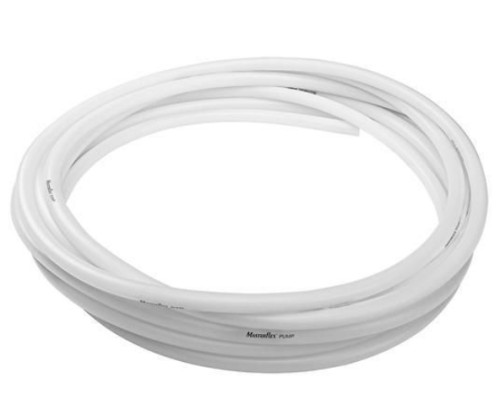

Avantor® Masterflex® I/P® Precision Pump Tubing, C-Flex®, I/P 73, 3/8 in. Inside Diameter 25 ft, 06424-73
Features:
- Genuine Masterflex® tubing undergoes robust testing to provide optimal performance/pump life hours with peristaltic pump equipment
- Precision extruded to tight tolerances for high repeatability, accuracy, and reproducibility
- Maintains flexibility at extreme temperatures
- Global market leader in range of formulations for most extensive chemical compatibility
- Single-use custom lengths and configurations available to minimize downtime
- Regulatory Approvals to match your unique application
- Always in stock—most formulations and sizes available to ship same day
- Ultra smooth inner surface results in fewer extractables
- I/P® 73 tubing has a 3/8 in. (9.5 mm) inner diameter
- Accepts 3/8 in. hose barb for tubing connection
- Offers enhances biocompatibility with longer pumping life
- Nonpyrogenic, noncytotoxic, and nonhemolytic — protecting purity of fluid
- Heat sealable and weldable
- Ideal for biopharmaceutical processing and storage and botanical production
Specifications:
| Model | 06424-73 |
| Tubing material | C-Flex® |
| Tubing I.D. | 9.50 mm (0.374 in.) |
| Hose barb size | 0.375 in. |
| I/P Masterflex Tubing Size | 73 |
| Max. flow rate | 8000 mL/min |
| Length per pack | 7.6 m (25 ft.) |
| Max. Pressure | 1.4 bar (20 psi) |
| Min. Temperature | –45 °C (–50 °F) |
| Max. Temperature | 121 °C (250 °F) |
| Min. temperature (dynamic) | –40 °C (–40 °F) |
| Max. temperature (dynamic) | 100 °C (212 °F) |
| Max. Vacuum | 660 mm Hg (26 in. Hg) |
| Pump series | I/P |
| Regulatory approvals | ADCF;European Pharmacopoeia;Non-DEHP;RoHS;USP |
| Sterilization | Autoclave, Ethylene Oxide, Gamma Irradiation |
| Sterilisation method autoclave | Yes |
| Sterilisation method EtO | Yes |
| Sterilisation method gamma | Yes |
| Suction lift H?O | 8.8 m (29 ft.) |
Specifications
| Dimensions | 3/8 in. ID x 25 ft length |
|---|---|
| Manufacturer | Avantor |
| Model No | 06424-73 |
