Description

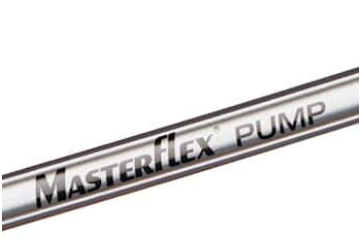

Masterflex® L/S Tygon® E-Lab E-3603 Pump Tubing, L/S 25, 50 ft.
Features:
- Inexpensive general laboratory tubing
- Clear for easy flow monitoring
- Ideal for virtually all inorganic chemicals; not recommended for orgainic solvents
- Nonaging, nonoxidizing
- Low gas permeability
- Good for viscous fluids
- High dielectric constant
Applications:
- Acids
- Alkalies
- Pressure & vacuum applications
- Viscous fluids (excellent)
- Sterile fluids (poor)
Specifications:
| Pump Series | L/S |
| L/S Masterflex® Tubing Size | 25 |
| Tubing Formulation | Tygon® E-Lab (E-3603 |
| Tubing Inside diameter | 4.8 mm (0.189 in) |
| Maximum Flow Rate (mL/min) | 1000 |
| Maximum Pressure | 35 PSI (2.4 bar) |
| Maximum Vacuum | 660 mm Hg (26 in. Hg) |
| Dynamic Temperature Range | 0 to 40 °C (32 to 104 °F) |
| Temperature Range | -46 to 74 °C (-51 to 165 °F) |
| Suction Lift | 8.8 m H2O (29 ft H20) |
| Length Per Pack | 15.2 m (50 ft) |
| Sterilization Methods | Autoclave, Ethylene Oxide |
| Resin Cerification | 1935/2004; ADCF; FDA; Non-DEHP; RoHS; EU Food 10/2011; European Phamacopoeia; NSF-51; Non-Phthalate; 3A; USP |
