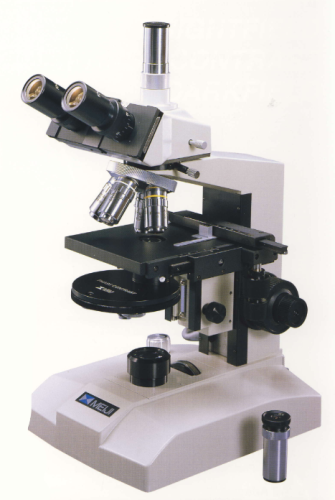

Binocular Microscope, 10X Eyepiece, Phase, 10, 20, 40, 100 X, Meiji Techno America, ML2955

Meiji Techno America® Binocular Microscope, 10X Eyepiece, Phase, 10, 20, 40, 100 X, ML2955

Features:

• Bionocular viewing head, inclined at 30 degrees, rotatable through 360 degrees
• Dual graduated diopter eyetubes with interpupillary adjustments of 52 mm to 72 mm
• Paired DIN KHW10X eyepieces with 20 mm field of view, 22 mm eye relief
• Smooth operating, revolving quadruple ball bearing nosepiece
• Five types of objectives are available:
  • S. Flat Achromats
  • SM Semi Planachromats
  • Planachromats
  • DIN Achromats Phase
  • BF Semi Plan Phase
• Two types of stages are available:
  • Attached stage is 120 mm x 140 mm rectangular mechanical stage with movements of 75 mm (X) and 40 mm (Y) and is graduated with vernier readings to 0.1 mm, equipped with low-positioned drop-down coaxial controls
  • Flat-top stage is 171 mm x 140 mm rectangular stage with movements of 80 mm (X) and 52 mm (Y) and is drop-down coaxial controls and a detachable specimen guide
• Achromatic, N.A. 1.25 substage condenser with iris diaphragm and filter tray offered as standard equipment
• Built-in Koehler illuminator with field iris covers all aperture and field filling requirements from 4X to 100X objectives
• 6V 30W halogen lamp with variable intensity controls provided as standard equipment
• Coaxial coarse and fine focusing controls with graduation reading, 2 micronsper division
• Incorporates tension adjustment and safety Auto- focus stop unit
