Description

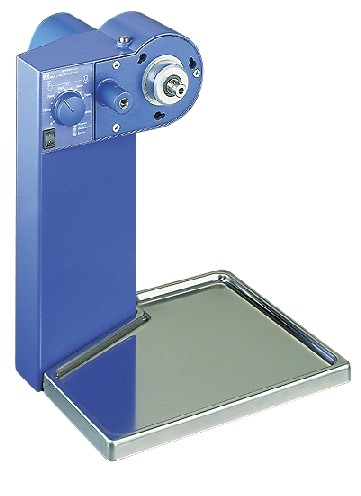

Continuously operating universal grinder. - Powerful drive - Easy to clean working surface made of stainless steel - Two different grinding heads can be attached to the drive - Heads are easily changeable - Grinding heads not included
Specifications
Process type inline
Operating principle cutting/impact
Motor rating input [W] 1000
Motor rating output [W] 500
Speed range [1/min] 3000 - 6500
Power-on time ON [min] 120
Power-on time OFF [min] 30
Milling chamber, can be cooled with water no
Mill feed can be cooled in milling chamber with dry ice yes
Mill feed can be cooled in milling chamber with liquid nitrogen no
Dimensions (W x H x D) [mm] 320 x 380 x 300
Weight [kg] 9.7
Permissible ambient temperature [C] 5 - 40
Permissible relative moisture [%] 80
Protection class according to DIN EN 60529 IP 22
RS 232 interface no
Analog output no
Voltage [V] 230 / 115
Frequency [Hz] 50/60
Power input [W] 1000
