Description
MG-1000 Microgripper is a revolutionary product designed to provide high accuracy manipulation of microscopic specimens with precise and predictable control of the direction and force applied to any object. The new level of control allows for selective handling of even the smallest samples such as cells, insects, bacteria, fine wire and ultra thin electrodes, optical elements, and electronic microcircuits without causing damage to the objects.
Features:The MG-1000 utilizes a Piezoelectric Polymer Film as the basic component in the gripper assembly for activating the precise movement of the "tweezer like" stainless steel tips.
Reproducible grip force on a specimen can be easily maintained with this system.
The 750 Controller provides a linear grip/release control of the MG-1000's Gripper Tips and a Foot Pedal allows "hands off" gripping while viewing the specimen under a microscope.
Both Controllers allow the Microgrippers to gently hold even the smallest microscopic specimens.
The MG-1000 Microgripper Systems have a broad array of stainless steel Gripper Tip options for the most demanding applications.
Micromanipulator features:
3 dimensional movement with two conveniently located levers.
10 to 1 reduction in hand movement.
10 mm excursion in all three axes.
No arc movement or backlash.

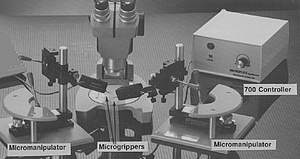

The complete MG-1000 System is comprised of the Microgripper Assembly, Interchangeable Gripper Tips and a Controller. The System is fully compatible with any available micromanipulator such as the D10P/S10 Micromanipulator. For operation on 115V, 60 Hz.
Features:
Specifications
| Power | 115V; 60 Hz |
|---|---|
| Application | Manipulation of Microscopic Specimens |
| Accuracy | 10 mm Excursion in All Three Axes |
| Manufacturer | Preiser Scientific |
| Model No | MG-1000 |
