Description

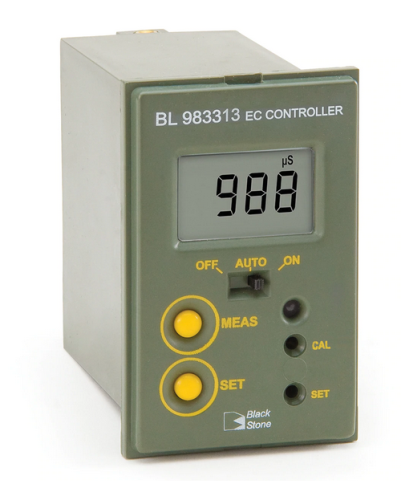

Hanna Instruments Mini Conductivity Controller, 0-1999 μS/cm, BL983313-0
Features:
- Compact, panel mounted, process controller designed to measure electrolytic conductivity (EC) of a process stream
- Allows users to choose automatic or manual dosing modes—dry contact relay activates when a reading is above the setpoint when in automatic mode
- Relay can activate either a dosing pump or a solenoid valve
- Programmable overdose protection that can deactivate dosing relay if setpoint is not reached within a specified time interal (5 to 30 minutes)
- Relay can be disabled (off), placed in auto mode, or placed in manual mode (on) by moving the switch—manual mode is useful for priming a dosing pump
- Multicolor LED indicators for quick status check—green indicates meter is measuring and reading is below setpoint; orange/yellow means that reading is above setpoint and relay is activated; blinking red indicates alarm condition such as maximum dosing time has been exceeded
- Relay dosing contact is protected by fuse rated to 2A load
- Quick-connect terminal blocks are clearly labeled for easy connection to power, conductivity probe and relay for dosing pump or valve, audible alarm, or light
- HI7634-00 (92-2695-69) conductivity probe which is available in multiple cable lengths—purchase separately
Specifications:
| Range | 0 to 1999 µS/cm |
| Resolution | 1 µS/cm |
| Accuracy (@25 °C/77 °F) | ± 2% full scale |
| Calibration | Manual, with CAL trimmer |
| Dosing Relay | Maximum 2A (fuse protected), 250 VAC, 30 VDC |
| Dosing Selection | Relay activated (contact closed) when the measured reading is greater than the setpoint |
| Setpoint | Adjustable from 0 to 1999 µS/cm |
| Overtime | Adjustable, typically from 5 to approximately 30 minutes |
| Temperature Compensation | Automatic from 5 to 50 °C (41 to 122 °F) with beta = 2%/°C |
| Power Supply | Models"-0": 12 VDC adapter (included) Models"-1": 115/230 VAC; 50/60 Hz |
| Dimensions | 83 x 53 x 99 mm (3.3 x 2.1 x 3.9") |
| Weight | Models"-0": 200g (7.1 oz.) Models"-1": 300g (10.6 oz.) |
| Order Information | BL983313-1 (115/230 VAC) and BL983313-0 (12 VCD); supplied with mounting brackets, transparent cover, and instruction manual |
| Warranty | 2 years |
