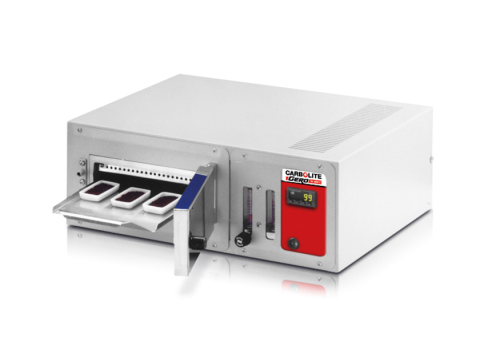

Carbolite-Gero Minimum Free Space Oven, 120 V/1 ph/50-60 Hz/500 W, Verder Scientific, MFS-120SN/02-132/TMP-DIGOT-O

The Minimum Free Space is designed for the determination of moisture in coal or coke by drying in a nitrogen atmosphere. Oven meets ISO-687 and ISO-1172 Specifications.

Features

• A resistance wire buried in a refractory slab heats the oven.
• Case is fabricated from zinc coated steel sheet.
• The oven chamber, formed from an aluminum casting, provides uniform temperature throughout. Mineral wool insulation helps to maintain accurate temperatures. The chamber has a drop down door with an airtight seal. A solid-state controller monitors temperature.
• The nitrogen gas is preheated before entering the chamber. Gas flows, inlet and outlet, are monitored by flow meters. Outlet flow meter can be by-passed to avoid condensation build up in the meter.
• CE approved.
• Chamber dimensions are 1(25mm)H(This height is reduced to 22mm beneath the control thermocouple) x 73/4(195mm)W x 111/2 (290mm)D.
• External dimensions are 71/4 (185mm)H x 191/4 (490mm)W x 173/4 (450mm)D.
