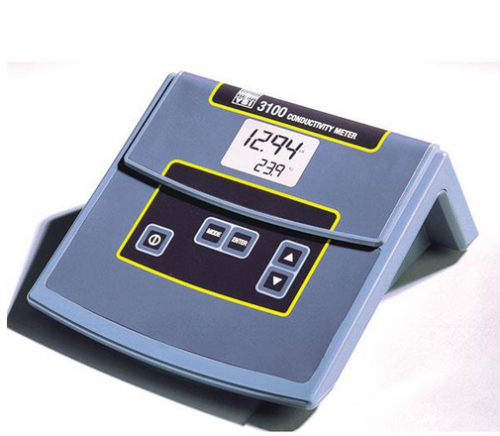

Description
The instrument uses forced-current measurement technology, and other features including direct-reading digital display, adjustable temperature coefficient, reference temperature, and automatic temperature compensation.
The YSI 3100 uses a line of NIST-traceable conductivity cells with built-in temperature sensors, assuring the most accurate measurements.
Ensure even more accurate readings by using YSI conductivity solutions and the 3166 Resistor set as part of your QA/QC procedures.
Features
- Provides high-accuracy measurements for basic conductivity needs
- Uses forced-current technology
- Measures conductivity, salinity and temperature
- Easy-to-read LCD display
- CE compliant
Specifications
Calibration |
Single Point |
|
Cell Connector |
7-pin Mini Din |
|
Cell Constant |
0.01, 0.1, 1, 10 cm |
|
Certifications |
UL, CSA, CE |
|
Dimensions |
Size |
9 x 9.5 x 4.4in. |
Weight |
2.6lbs (1.1kg) |
|
Display |
LCD |
|
Operating Environment |
95% relative humidity, non-condensing |
|
Platinizing Capability |
Included |
|
Power |
AC, 115V |
|
Method |
Linear |
|
Temperature Compensation |
Reference Temperature |
15 - 25C |
Temperature Coefficient |
0 - 4%/C |
|
Water Resistance |
Waterproof |
|
Warranty |
2-year instrument |
Conductance | |||
Range |
Accuracy |
Resolution |
Frequency |
0 to 49.99 S/cm1
|
0.50% full scale |
0.01 S/cm |
70 Hz |
0 to 499.9 S/cm |
0.50% full scale |
0.1 S/cm |
70 Hz |
0 to 4999 S/cm2
|
0.50% full scale |
1 S/cm |
240 Hz |
0 to 49.99 mS/cm3 |
0.50% full scale |
0.01 mS/cm |
1562 Hz |
0 to 499.9 mS/cm4 |
0.50% full scale |
0.1 mS/cm |
1562 Hz |
1 Requires a cell constant of K=0.01, K=0.1 or K=1. 2 Requires a cell constant of K=0.1, K=1 or K=10. 3 Requires a cell constant of K=1 or K=10. 4 Requires a cell constant of K=10. | |||
Range |
Accuracy |
Resolution |
|
Salinity |
0-80 ppt (NaCl) |
2% or 0.1 ppt |
0.1 ppt |
Temperature |
-5 to +95C |
0.1C + 1 lsd |
0.1C |
