Description

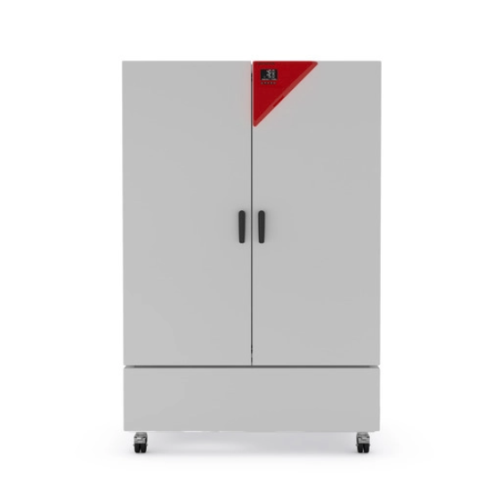

Binder® Model KBF-S 720 Humidity Test Chambers with Large Temperature / Humidity Range, 200 to 240 V / 50 to 60 Hz, 9020-0369
Features:
- Safe thanks to climatic homogeneity that far exceeds accuracy required by ICH guidelines, even with fully loaded unit
- Solid.Line KBF-S climate chamber — custom-made solution for long-term testing and accelerated stability testing of pharmaceutical products in accordance with ICH Q1A guideline
- Reliable thanks to failsafe operation without compromise
- Interior and Longlife evaporator plate are made entirely from stainless steel
- Smart, as wide range of accessories makes it highly compatible for adaptation to specific customer requirements
- Economical thanks to maximum effective volume which allows for 30% larger load compared to the competition
- APT.line™ preheating chamber technology
- Humidity regulation with capacitive humidity sensor and steam humidification
- LCD to display temperature and humidity along with additional information and alarms
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Access port with silicone plug, 30 mm, left
- Robust twin casters with brakes
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
Specifications:
| Article Number | 9020-0369 |
| Designation |
KBFS720UL-240V |
| Option model |
Standard |
| Max. heat compensation at 40 °C | 550 W |
| Temperature Uniformity at 25 °C and 60% RH | 0.3 ± K |
| Temperature Uniformity at 40 °C and 75% RH | 0.3 ± K |
| Temperature Fluctuation at 25 °C and 60% RH | 0.1 ± K |
| Temperature Fluctuation at 40 °C and 75% RH | 0.1 ± K |
| Humidity Fluctuation at 25 °C and 60% RH | 1.5 % r.F. |
| Humidity Fluctuation at 40 °C and 75% RH | 1.5 % r.F. |
| Recovery Time After Door Was Opened for 30 s at 25 °C and 60% RH | 16 min |
| Recovery Time After Door Was Opened for 30 s at 40 °C and 75% RH | 17 min |
| Permitted Load | 150 kg |
| Load per Rack | 45 kg |
| Wall Clearance Back | 100 mm |
| Wall Clearance Side | 300 mm |
| Sound-Pressure Level | 53 dB(A) |
| Energy Consumption at 40 °C and 75% RH | 500 Wh/h |
| Number of Shelves (Standard/Maximum) | 2/15 |
| Shelf Material | Stainless steel |
Specifications
| Range | Temperature: 0 to 70 degrees C |
|---|---|
| Range | Humidity: 20 to 80% RF |
| Capacity | 700 L |
| Material | Inner chamber and shelves: stainless steel |
| Power | 200 to 230 V, 1 phase, 50/60 Hz, 2 kW, Fuse: 16 Amp |
| Compliant/Standard | ICH Q1A, Class 3.1 (DIN 12880) |
| Other | Internal H x W x D: 1250 mm x 973 mm x 576 mm |
| Dimensions | External H x W x D: 1925 mm x 1250 mm x 890 mm |
| Weight | 284 kg |
| Manufacturer | Binder |
| Model No | 9020-0369 |
