Description

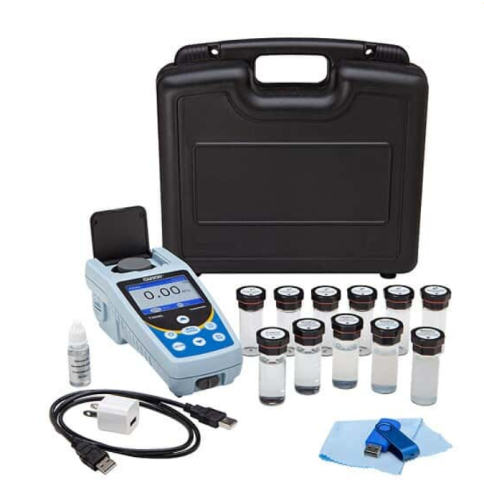

Cole-Parmer® Oakton® Model T-100IR Portable Infrared Turbidity Meter Kit, 35635-15
Features:
- Auto-ranging from 0 to 1000 NTU (FNU)
- Stores up to 500 sets of data
- Suitable for field use—meets IP67 water-resistant requirements
- Infrared light source delivers high accuracy across entire range
- Meets performance criteria as specified by ISO 7027 (DIN EN 27027) method
- Includes normal and continuous measurement modes, parameter setup, data recall, real-time clock, calibration date check, automatic power off, and low voltage indication
- Continuous measure mode used to automatically generate average, maximum and minimum measured values in data storage interface, suitable for sample solutions with rapid settling and continuous measurement changes
- Large TFT color screen displays blue background for measurement mode, green background for calibration mode, and features operation guides for easy calibration and measurement
- USB interface cable can transfer this data to computer for future analysis
Included:
- Six 25 x 60 mm sample test cuvettes
- Five 60-mL polymer standard calibration solutions (0.0, 20, 100, 400, and 800 NTU)
- 10 mL of silicone oil
- Microfiber wiping cloth
- PCLink software on USB flash drive
- Hard carrying case
- USB cable with power adapter
Specifications:
| Meter Type | Portable |
| Display Type | TFT color screen |
| Turbidity Resolution | 0.01, 0.1, 1 NTU |
| Repeatability | ≤±1 of reading or 0.02 NTU (FNU) (greater of the two) |
| Stray Light | ≤0.02 NTU (FNU) |
| Memory Size | 500 sets of data |
| Waterproof | Yes |
| Battery Life | 20 hours continuous use; 40 days at 30-minute daily use |
| Calibration Standards | Distilled water or deionized water 0 NTU (FNU) Polymer or Formazin Solution 20 100 400 and 80 0 NTU (FNU) |
| Calibration Record | Calibration date and time |
| Detector | Silicon photovoltaic Measuring |
| Measuring Modes | Normal measurement and continuous measurement |
| Sample Vials | 25 mm diameter ×60 mm length, high borosilicate glass with cap |
Specifications
| Range | Turbidity: 0 to 1000 NTU Auto Range, 0.01~19.99 NTU (FNU), 20.0~99.9 NTU (FNU), 100~1000 NTU (FNU) |
|---|---|
| Range | Temperature: 0 to 50 degrees C / 32 to 122 degrees F |
| Power | 4 x alkaline AA batteries (included) |
| Accuracy | Less than/Equal to plus or minus 2% of reading |
| Compliant/Standard | CE, CSA, IP67, ISO 7027, ISO9001:2015 and DIN EN 27027 |
| Operating Environment | 0 to 50 deg C / 32 to 122 deg F; relative humidity: 0 to 90% @ 30 deg C, 0 to 80% @ 40 deg C, 0 to 70% @ 50 deg Non-cond |
| Connectivity | Output: USB |
| Dimensions | L x W x H: 20.3 x 9 x 8 cm / 8 x 3-1/2 x3 in. |
| Weight | Meter: 385 g; / with Case: 1.5 kg |
| Manufacturer | Cole-Parmer |
| Model No | 35635-15 |
| Warranty | 2 years |
