Description

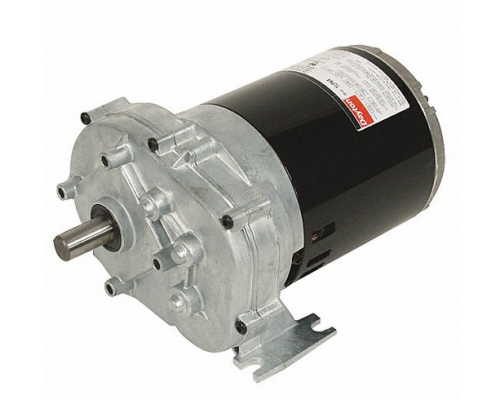

Dayton® AC Gearmotor, 115 V/1/60 HZ, 1LPP4
Features:
- 115 VAC Split-Phase Parallel-Shaft Gearmotors
Specifications:
| Item Type | AC Gearmotor |
| Power Requirements | 115 V, 1 Phase, 60 HZ |
| Maximum Torque | 400 in-lb |
| Shaft Type | Single |
| Shaft Orientation | Parallel |
| Rotation | Clockwise/counterclockwise |
| Nameplate RPM | 30 RPM |
| Enclosure | Open dripproof |
| Mounting Position | All angles |
| Brake Type | None |
| Length (Less Shaft) | 9-5/8 in. |
| Reversible Shaft Output | No |
| Overhung Load | 190 lb |
| Input HP | 1/4 hp |
| Gear Ratio | 57:1 |
| Full Load | 3.9 amps |
| Insulation Class | B |
| Thermal Protection | None |
| Maximum Ambient Temperature | 40 °C |
| Motor Type | Split-phase |
| Shaft Diameter | 3/4 in. |
| Shalft Length | 1-1/2 in. |
| Keyway Size Type | #605 woodruff key |
| Bearings Ball on Motor | Porous bronze sleeve on case |
| Lubrication | Grease filled |
| Finish | Unpainted |
| Housing | Die cast zinc |
| Gear Case Material | Die cast zinc |
| Gears | Phenolic/steel |
| Gear Material | Steel/phenolic |
| Seals | Lip Type on Input and Output Shaft |
| Standards | C-UL Recognized, UL Recognized |
